Hygienic Pipe Fittings

  • Hygienic DIN 11851 union-Stainless steel 316L
  • Hygienic DIN 11851 union-Stainless steel 316L
Hygienic DIN 11851 union-Stainless steel 316LHygienic DIN 11851 union-Stainless steel 316L

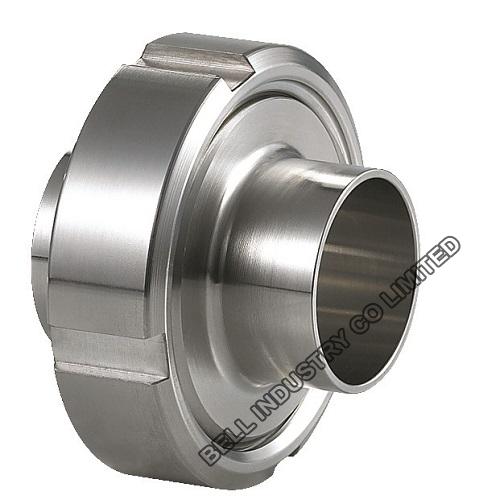

Hygienic DIN 11851 union-Stainless steel 316L

  • Size Range: 1″ OD – 4″ OD available. (DIN Imperial). DN10 (10mm) to DN150 (150mm) (DIN Metric).
  • MATERIAL: T304, T316L, 1.4301, 1.4404
  • STANDARD: DIN 11851
  • SEALING GASKET:Silicone, EPDM, PTFE, Buna-N etc.
  • Description: Hygienic DIN 11851 union-Stainless steel 316L,DIN unions are manufactured in accordance with DIN 11851. Consisting of a round slotted nut in 304, Weld liner and weld male in 316, and a “D” style EPDM
  • INQUIRY   EMAIL
Hygienic DIN 11851 union-Stainless steel 316L

-Size Range: 1″ OD – 4″ OD available. (DIN Imperial). DN10 (10mm) to DN150 (150mm) (DIN Metric).
-MATERIAL: T304, T316L, 1.4301, 1.4404
-STANDARD: DIN 11851
-SEALING GASKET:Silicone, EPDM, PTFE, Buna-N etc.
-TEMPERATURE: -30°C / -22°F up to +120°C/ +248°F
-Specification: DIN 11851 (EN10357) standard.
-Gasket Material: EPDM
-Heavy duty blank liners in 316/304.
-DIN Spanners available to suit
-Metric Din is also stocked from DN10 (10mm) upto DN150 (150mm)

Sanitary DIN Union Fittings consist of:
– Round Slotted Nut
– Welding Liner
– Welding Male
– Blank Liner
– Long Welding Male
– Blank Nut
– Long Welding Liner
– Sanitary Gasket


APPLICATION:Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.
