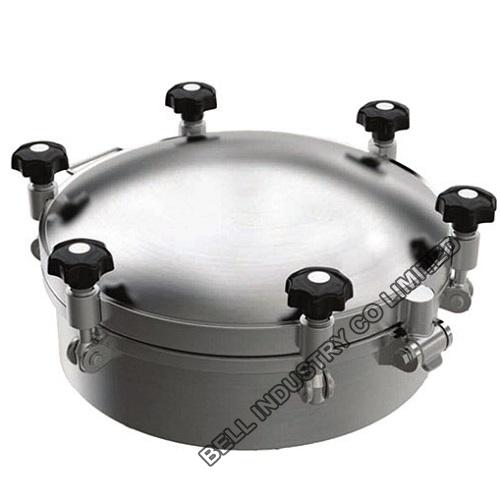

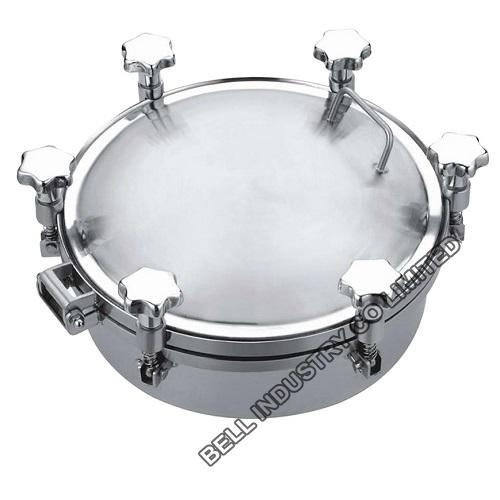

Hygienic Stainless Steel Pressure Manway Tank Doors-Round Type description:
-Size: round 200mm-600mm
-Pressure:1.5bar to 6bars
-Wetted material: 1.4571 or 1.4404,Attachment parts: 1.4301
-Standard as per : 3A, SMS, ISO, DIN, AS, BS4825, BPE
-Plastic handles with stainless steel insert
-Silicone-gasket
-With hinge and handle
-Neck length 150 mm, Neck thickness 4 mm
-Plastic hand wheel or stainless steel hand wheel
-Internal surface: Ra≤0.8µm
-External surface: polished, semi-light, shot-blasting
-Max. pressure: 3.0bar
-Gasket: EPDM, NBR, Silicone, FPM, comply with FDA177.1600.
-Cover size: 300mm 350mm 400mm 450mm 500mm 600mm
-Height: 100mm, 120mm, 150mm
