Hygienic Pipe Fittings

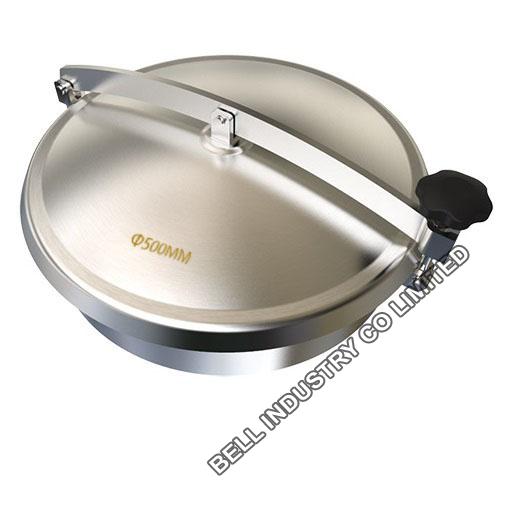

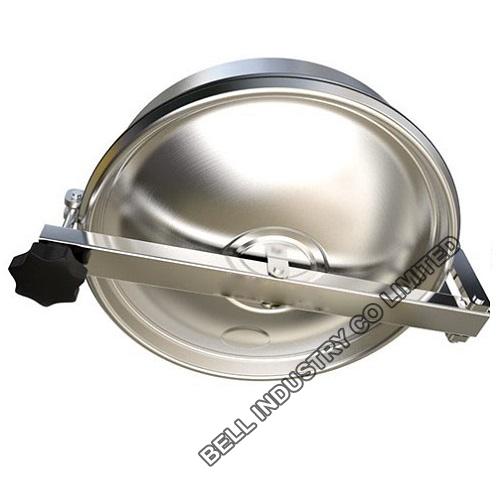

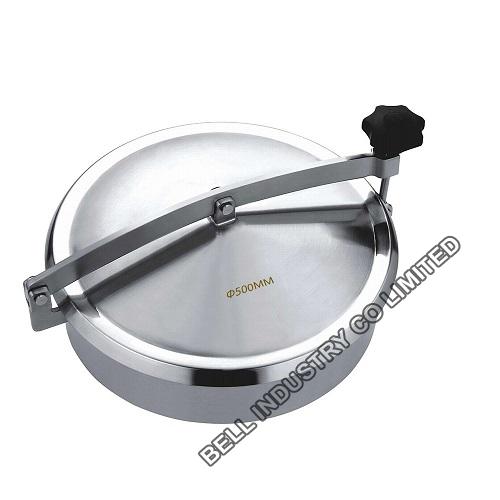

Hygienic Stainless Steel Manway Tank Doors-Round Type-Non Pressure
- Manway Tank door Hygienic grade
- Height:100MM,120MM,150MM
- Wetted material: 1.4571 or 1.4404 Attachment parts: 1.4301
- Seal Material:Silicone, EPDM, Viton, NBR
- Description: Manufacturer of Hygienic Stainless Steel Manway Tank Doors-Round Type, Non pressure type, used for Chemical and Food Processing,non pressure applications in grades 304L and 316L.
-
Hygienic Stainless Steel Manway Tank Doors-Round Type description:
-Available size: Φ200MM-600MM.
-Height:100MM,120MM,150MM
-Thickness:2.5-3.0MM
-Material: 1.4404/1.4301, SS304/SS316L
-Gasket: EPDM/NBR/SILICION/FPM FDA177.1600
-0.0 bar/g Max Pressure
-Blue Nylon Handwheel MEC/80/A.
-Internal Surface : Ra0.8μm~0.5μm
-Outside Surface: polishing finished ,matt finished and sand-blasting finished
-Availably size: 200~ 600mm
-Height Option: 100,120,150mm
-Connection Welding Top of tanks
-Pressure: without pressure
-Application Scope: Widely used for non pressure vessel in the fields of food,beverage,chemical,etc
Design: Without pressure; Outside opening manhole cover; stainless steel handwheel.
