Hygienic In line Y Strainers-Stainless steel 316L

  • 1″ OD – 6″ OD line size available.
  • Standard finish: 240 grit O.D, Mill finish I.D – Other finishes available on request.
  • Manufactured entirely from 316L Stainless Steel.
  • Alternative ends can be welded to customers requirements – RJT, IDF, CLAMP, DIN & SMS
  • Description: Hygienic In line Y Strainers-Stainless steel 316L,Alternative ends can be welded to customers requirements – RJT, IDF, CLAMP, DIN & SMS,-Material: 1.4404/1.4301, SS304/SS316L
  • INQUIRY   EMAIL

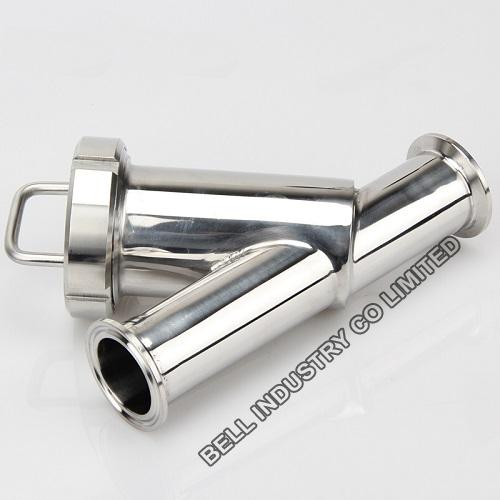

Hygienic In line Y type Strainers-Stainless steel 316L


-Seal: EPDM (standard) conforms to FDA177.2600, silicone
-Material: 1.4404/1.4301, SS304/SS316L
-Manufactured entirely from 316L Stainless Steel.
-Size:1″ OD – 6″ OD line size available.
-Standard finish: 240 grit O.D, Mill finish I.D – Other finishes available on request.
-For 1″, 1.5″ & 2.5″ line sizes, a concentric reducing cone will be used on a standard body.
-Alternative ends can be welded to customers requirements – RJT, IDF, CLAMP, DIN & SMS.
-Connection end: Welded, clamped,threaded or other requirement.
-Max. Working Tem.:120 degree C
-Pressure:10 Bar/145PSI
-Filter element :30#, 40#, 60#, 80#,100#, 120#, 150#,  200#, 240#, 260#, 300#, 320#, 360#, 400#

-Shut off valves can be welded to the unit.

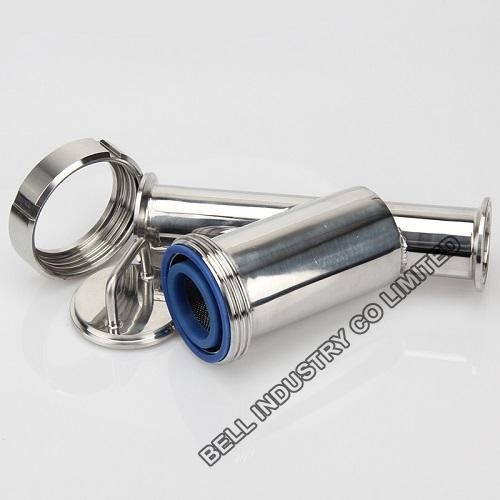

-A straight through product strainer assembly consists of: 1 x Element, 1 x Body, 1 x Single Hinged
-Clamp & 1 x Lipped EPDM joint ring.
-Elements – Perforated type & wedge wire type available to choose from – See element pages
-Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
