Hygienic Pipe Fittings

  • Hygienic RJT union-Stainless steel 316L-BS 4825 Part 5
  • Hygienic RJT union-Stainless steel 316L-BS 4825 Part 5
  • Hygienic RJT union-Stainless steel 316L-BS 4825 Part 5
Hygienic RJT union-Stainless steel 316L-BS 4825 Part 5Hygienic RJT union-Stainless steel 316L-BS 4825 Part 5Hygienic RJT union-Stainless steel 316L-BS 4825 Part 5

Hygienic RJT union-Stainless steel 316L-BS 4825 Part 5

  • Sizes 1″ OD to 4″ OD
  • Manufactured to BS4825 PT5 Standard. (Formally BS1864)
  • Standard joint ring is Nitrile – Viton, EPDM & PTFE Solid also available.
  • Pressed blank liners, Machined liners, Reducing Liners, Blank nut & chains, Hose liners, RJT/BSP adaptor, RJT Male/Female 90d Elbow also stocked.

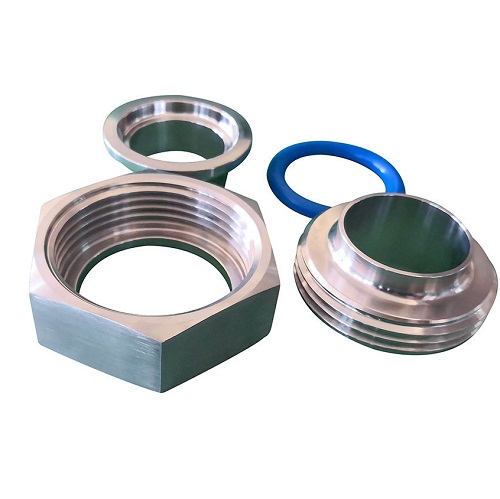

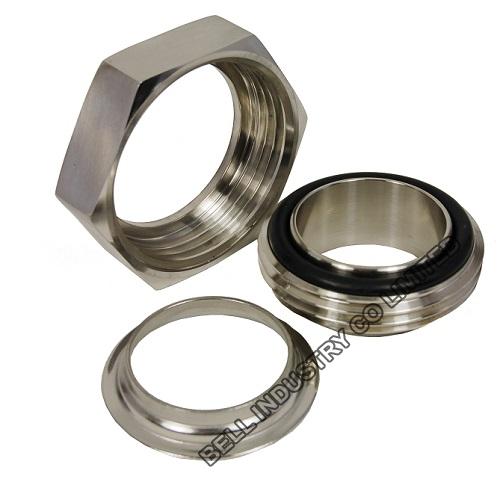

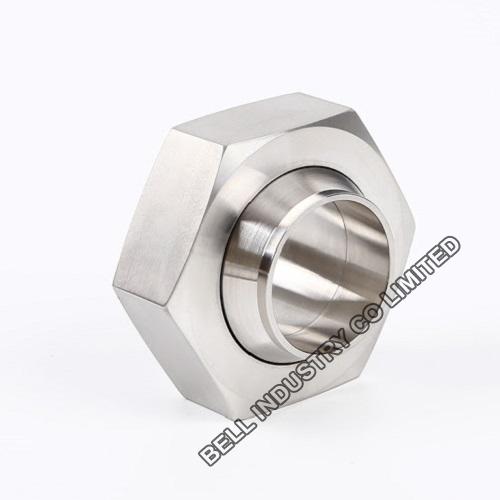

  • Description: Hygienic RJT union-Stainless steel 316L-BS 4825 Part 5. Sanitary RJT Union consist of a union nut, a welding/expanding male, a welding/expanding liner and a gasket. RJT union material: 1.4301 and 1.44
  • INQUIRY   EMAIL
Hygienic RJT union-Stainless steel 316L-BS 4825 Part 5

-Size Range: 1″ OD – 4″
-MATERIAL: T304, T316L, 1.4301, 1.4404
-STANDARD: BS 4825 Part 5
-SEALING GASKET:Silicone, EPDM, PTFE, Buna-N etc.
-TEMPERATURE: -30°C / -22°F up to +120°C/ +248°F
-Specification: BS 4825 Part 5.
-Gasket Material: EPDM
-Heavy duty blank liners in 316/304.
-DIN Spanners available to suit


Sanitary RJT Union mightg be consist of:
– RJT Hex Nuts
– RJT Weld Males
– RJT Weld Liners
– RJT Expanding Weld Male
– RJT Expanding Weld Liners
– RJT Seal
– RJT Plain Blank
– RJT Spanner
