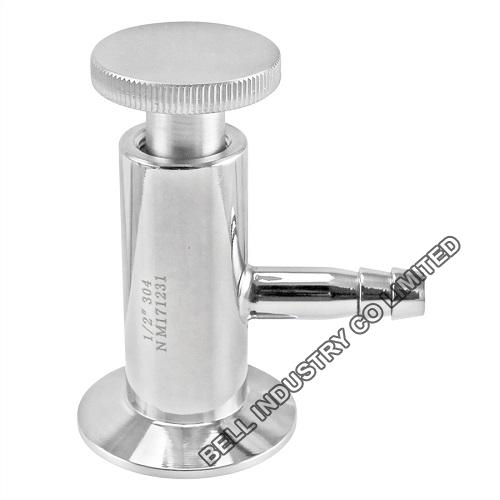

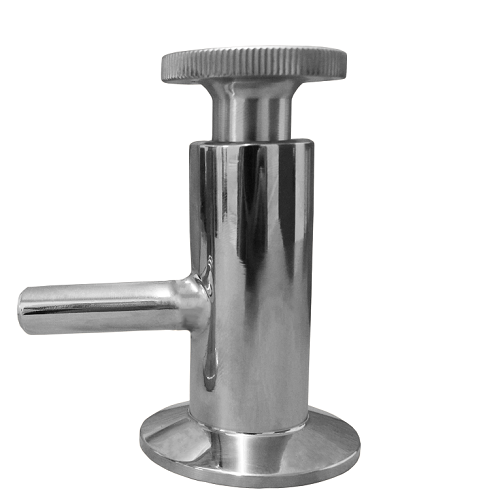

Sanitary sampling valve-Hygienic stainless steel 304
-Material: 304 (DIN-1.4301) / 316L (DIN-1.4404)
-Standard: DIN, 3A
-Seal material:
PTFE/Silicone, PTFE/FPM (PV-1),PTFE (PV-2)
-All seal materials comply with FDA 177.2600
-Continuous working temperature: -20° +135° (EPDM)
-Working pressure: 0~10 bar
-Sterilization temperature: 150° (Max 20min)
-Internal surface: Ra0.8μm
-Size:
1/4" 1/2" 3/4" 1"
-End connections available: clamp, thread, weld
-Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
