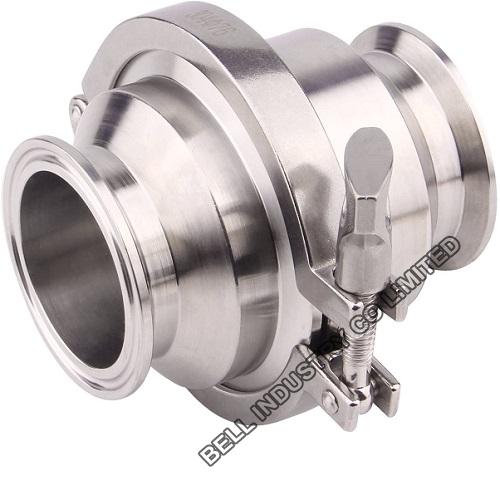

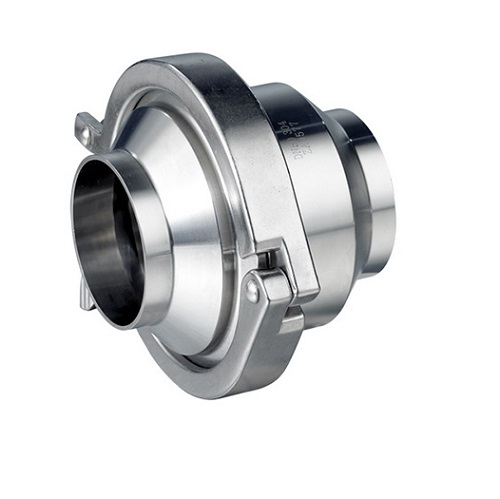

Sanitary Hygienic non return check valve-Stainless steel 316L
- Available sizes: DN 25/1
- Connections: Weld DIN 11850, Weld OD ASME BPE, Clamp DN 32676, Clamp OD ASME BPE, Clamp, SMS, RJT, FIL-IDF, etc.
- Reduced size design.
- Reduced size design.
- Description: Manufacturer of Sanitary Hygienic non return check valve-Stainless steel 316L material. It is a valve that prevents the fluid from flowing backwards and ensures that it flows in only one direction.
-
Sanitary Hygienic non return check valve-Stainless steel 316L description:
-Availably Size: DN15-DN100,3/4"-4"
-Seal Material: EPDM (standard) conforms to FDA177.2600
-Surface Finishing:RA<0.8 um
-Max Working Pressure: 10Bar(DN25 to DN100), 8bar(DN125 to DN150), 5bar(DN200 to DN300)
-Max. Working Tem.: 120 degree C(EPDM)
Material:
Housing: 1.4301 (304) / 1.4307 (304L) / 1.4404 (316L)
Valve plate: 1.4301 (304) / 1.4307 (304L) / 1.4404 (316L) / 1.4408 (316L)
Spring leadership: 1.4404 (316L)
Spring: 1.4310 (301) / 1.4571 (316Ti)
Seal: EPDM, FKM
Operating Principles:
Check valve is a valve that prevent thefluid from flowing back and ensures to flow in only one direction.It can be used to prevent the flow less from returning avoid pipe-hammering.It is used in the food-processing,beversge,wine,oil,cosmetics,pharmaceutical and chemical industries.
