Hygienic Valves

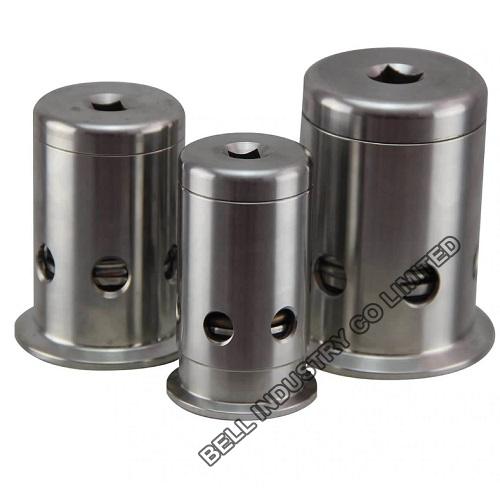

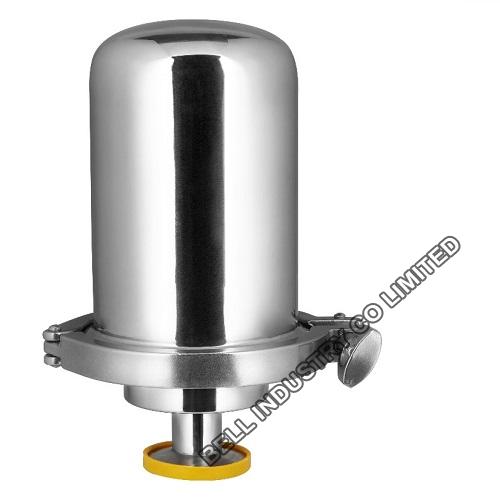

Hygienic Air Vent Valves
- Diameters: Available from 1” – 2” OD.
- Materials: 316 on all product contact surfaces.
- Seals Available: EPDM.
- Pressure: 10 bar Max.
- Description: Hygienic Air Vent Valves allows the automatic removal of air. These provide solid safety, efficiency and low cost of ownership for processing where hygiene standards are essential.
-

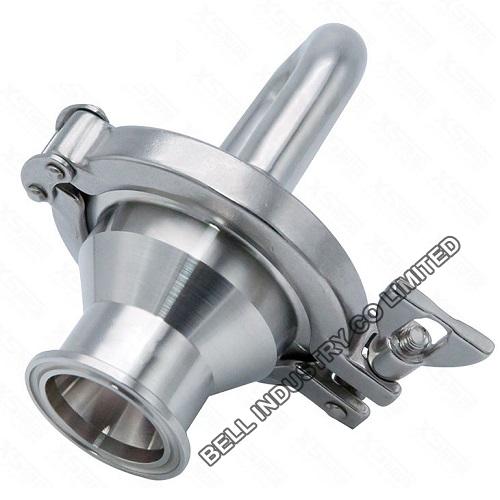

Hygienic Air Vent Valves(Straight Type Hygienic Rebreather) description:
-Connection end: welded, tri-clamped. Threaded, union end
-Filter element :30#, 40#, 60#, 80#,100#, 120#, 150#, 200#, 240#, 260#, 300#, 320#, 360#, 400#
-Size: 1"-4"
-Inside Ra: 0.4um
-Materials: 316 on all product contact surfaces.
-Seals Available: silicone,EPDM.
-Ball Material: Polypropylene (PP).
-Pressure Rating: 10 bar Max.
-Max Temperature Ball: 90 c.
-End Connections: Clamp.
The Air vent valve allows the automatic removal of air. The polypropylene ball floats when air enters the process system. When the air is removed the liquid moves ball back to its seat.
