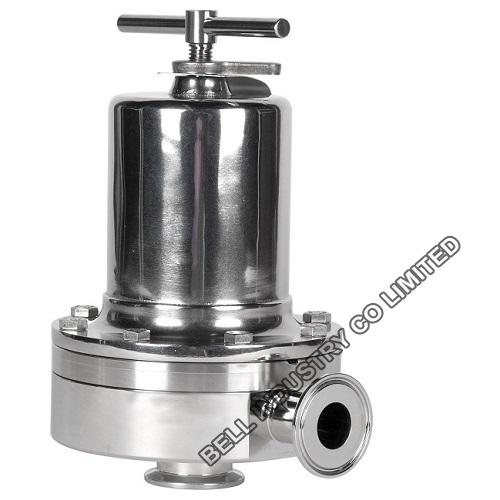

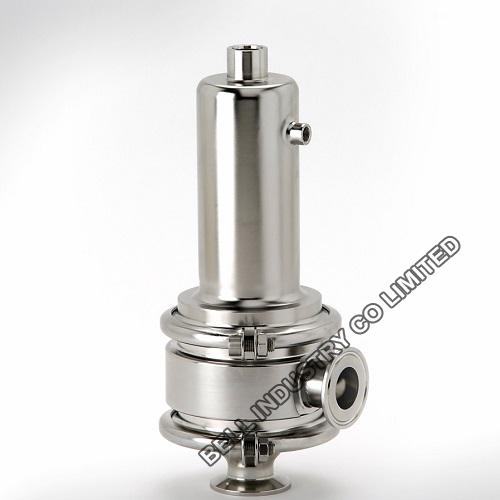

Sanitary Pressure Reducing Valves- Regulating valves description:
Pressure Reducing Valves are designed to reduce incoming water or steam pressure to a safer constant predetermined downstream level. Depending on the type of valve, the downstream pressure is established by a pressure adjustment setting on the valve or by an external sensor. Pressure Reducing Valves are utilized in residential, commercial, institutional, and industrial applications.
-Valve body type: 20, 30, 21, 22, 31, 32 type
-Max. Pressure is 10bar
-Simple to change the structure and low maintenance cost
-Cost-efficient leakage protection
-Hygienic exterior design
-Size:1"-4" DN25-DN100
-Grade: AISI304 and AISI316L
-FDA approved gaskets in silicone, EPDM, viton, PTFE
-Standard: 3A, SMS, DIN , etc
-Connections: butt welded;Tri clamp end; male threaded; female threaded; flange end;union connection;
-Inner surface finish is Ra0.6 to meet the requirement of food industries
Manual or pneumatic actuated or electric actuated are chosen as per the different applications.
External position sensors is available if needed.
C top control unit is available if needed
Our sanitary flow diversion valves are widely used for food, beverage, water, dairy, pharmacy, chemical, pharmaceutical industry, etc
