Hygienic Pipe Fittings

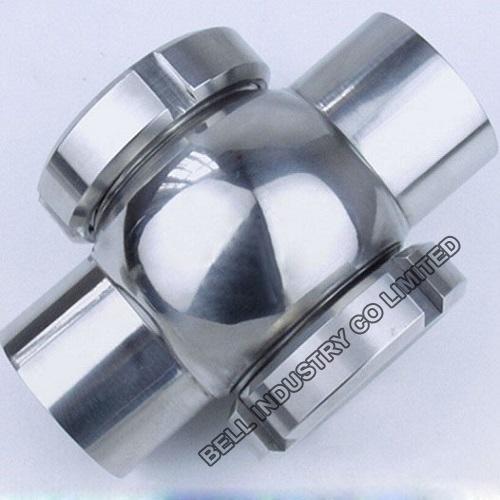

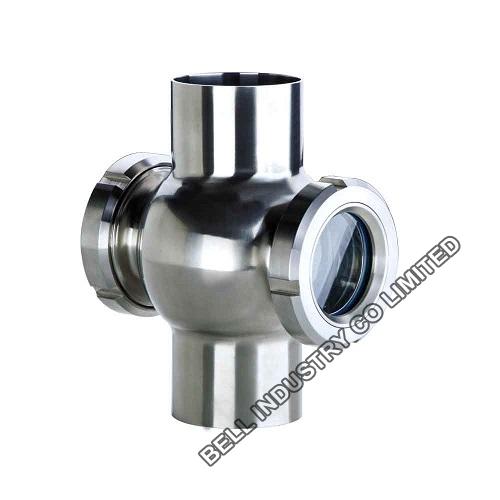

Hygienic Ball type Sight glass-Sanitary stainless steel 304 316L
- Ball type design
- Available in sizes: 1" to 4" OD weld ends.
- Material:AISI304(1.4301) AISI 316L(1.4404)
- Features a 316 Stainless Steel body, Pyrex Borosilicate high pressure clean glass and EPDM seal.
- Description: Hygienic Ball type Sight glass-Sanitary stainless steel 304 316L,1''-4'' to DN25 - DN100 the glass can be installed on the equipment through clamps.
-
Hygienic Ball type Sight glass-Sanitary stainless steel 304 316L Description:
-Material:AISI304(1.4301) AISI 316L(1.4404)
-Features a 316 Stainless Steel body, Pyrex Borosilicate high pressure clean glass and EPDM seal.
-Connection: weld, clamp, thread, DIN, SMS, IDF
-Gaskets material: NBR, EPDM, FPM in accordance with FDA177.2600
-Max temperature(basic): -10ºC-150ºC
-Available in sizes: 1" to 4" OD weld ends.
-Maximum working pressure, sizes 1" to 2": 10 Bar
-Maximum working pressure, size 2 1/2": 9 Bar
-Maximum working pressure, sizes 3" to 4" : 7 Bar
-Tubular design
-Joint seals in our hygienic valves are free from dead zones, removing the risk of bacteria and debris build up.
-RJT and clamp ends available upon request.
Hygienic Ball type Sight glass-Sanitary stainless steel 304 316L is used in food processing, pharmaceutical and process applications to view the contents, liquid flow and levels of media in the pipeline. It is easy to assemble and disassemble.
