Forged Steel Valves

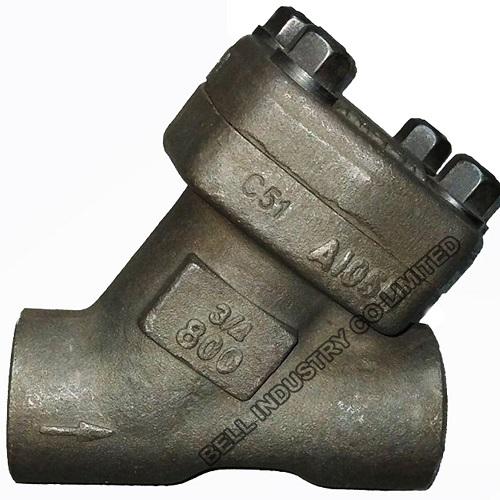

Forged Steel Y Type Check Valves
- Size: 1/4" to 2"
- Material: A105, LF2, F304, F316, F304L, F316L, F11, F22, F51, F5, F9, MONEL, ALLOY 20 etc.
- Class: 150LB to 2500LB
- Design and manufacture: API602,BS 5352, ASME B16.34
- Description: Forged Steel Y Type Check Valves, Size: 1/4" to 2", Class: 150LB to 2500LB, Design and manufacture: API602,BS 5352, ASME B16.34
-
Forged Steel Y Type Check Valves
-Size: 1/4" to 2"
-Material: A105, LF2, F304, F316, F304L, F316L, F11, F22, F51, F5, F9, MONEL, ALLOY 20 etc.
-Class: 150LB to 2500LB
-Design and manufacture: API602,BS 5352, ASME B16.34
-Face to Face: ASME B16.10, EN 558
-Test and inspection: API598
-Connection End: ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5, EN 1092
-Type: Forged Steel gate valves, ball valves, globe valves, swing check valves, lift check valve etc. Bolted bonneted or welded bonnet, reducer bore or full bore, Screwed end or SW end.
