Forged Steel Valves

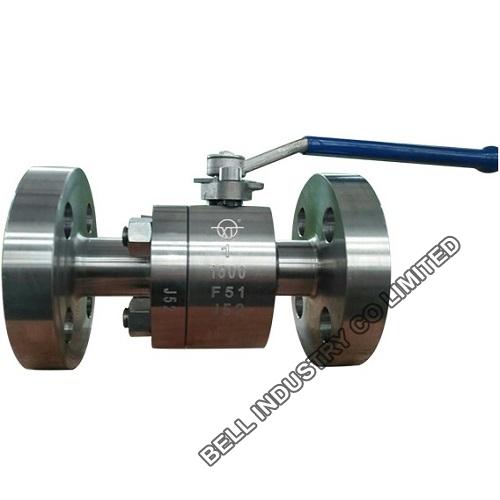

2pc-Forged Steel Floating Ball Valve 1500LB
- Material ： A105,LF2,F304,F304L,F316,F316L,F321,F51,F53.
- DESIGN AND MANUFACTURE: BS 5351/API 608/API 6D/ASME B16.34
- FACE TO FACE DIMENSIONS: ASME B16.10/API 6D
- NPS 26”& ABOVE: ASME B16.47
- Description: 2pc-Forged Steel Floating Ball Valve 1500 LB 2500 LB, FACE TO FACE DIMENSIONS: ASME B16.10/API 6D, NPS 26”& ABOVE: ASME B16.47
-
2pc-Forged Steel Floating Ball Valve 1500LB
-Material ： A105,LF2,F304,F304L,F316,F316L,F321,F51,F53.
-DESIGN AND MANUFACTURE: BS 5351/API 608/API 6D/ASME B16.34
-FACE TO FACE DIMENSIONS: ASME B16.10/API 6D
-FLANGE ENDS DIMENSIONS: NPS1/2”-24” ASME B16.5
-NPS 26”& ABOVE: ASME B16.47
-BW ENDS DIMENSIONS: ASME B16.25
-PRESSURE-TEMPERATURE RATINGS: ASME B16.34
-FIRE SAFE DESIGN: API 607/API 6FA
-NORMAL PRESSURE: CLASS 150~1500
-NORMAL DIAMETER: NPS 2″~36″
DESIGN FEATURES:
-FULL PORT DESIGN/REDUCED PORT DESIGN
-2 PIECE/3PIECE BOLTED BODY
-TRUNNION MOUNTED BALL TYPE
-DOUBLE BLOCK AND BLEED(DBB)
-SECONDARY/EMERGENCY SEALING
-AUTOMATIC BODY CAVITY&RELIEF
-BLOW-OUT PROOF STEM
-FIRE SAFE DESIGN
-ANTI-STATIC DEVICE
-ISO 5211 DIRECT MOUNTED TYPR
-WITH LOCKING DEVICE
