Forged Steel Valves

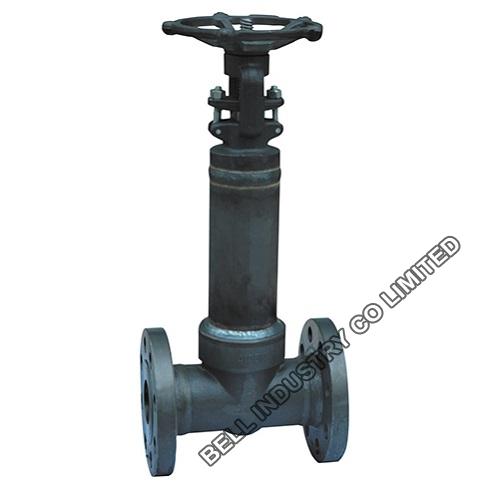

API 602 Cryogenic Forged Steel Gate Valve
- Size: 1/4
- 150LB~800LB,Low Temperature, BW, SW, NPT or RF, FF
- Pressure: 150LB-2500LB
- Low Temperature Extended Stem
- Description: API 602 Cryogenic Forged Steel Gate Valve, 150LB~800LB,Low Temperature, BW, SW, NPT or RF, FF, Pressure: 150LB-2500LB
-
API 602 Cryogenic Forged Steel Gate Valve
-Size: 1/4"-4"
-150LB~800LB,Low Temperature, BW, SW, NPT or RF, FF
-Pressure: 150LB-2500LB
-Low Temperature Extended Stem
-Design and manufacture conform to API 602, BS5352 & ASME 16.34
-Test and check conform to API 598, API 6D
-Remarks conform to MSS-SP-25
-Adopt the following structure
-Full bore or reduced bore
-Outside screw and yoke
-Self-centering gland
-Bolted bonnet ,spiral would eight-square gasket sealing bonnet or pressure seal bonnet
-Integral type top seat
-Flange ends confrm to ASME B16.5
-Butt-welding ends conform to ASME B 16.25
-Socket-welding ends conform to ASME B 16.11
-Screwed ends conform to ASME B1.20.1
-Face to face dimension conform to ASME B 16.10
-Operation type:hand wheel, electrical, pneumatic and hydraulic etc
