Forged Steel Valves

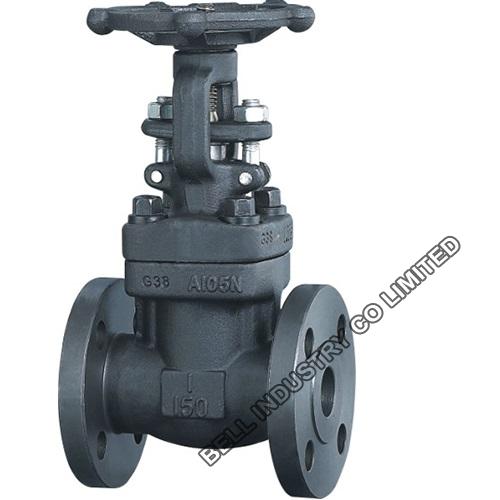

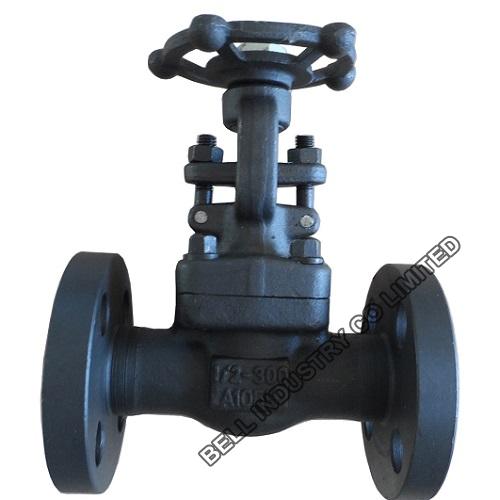

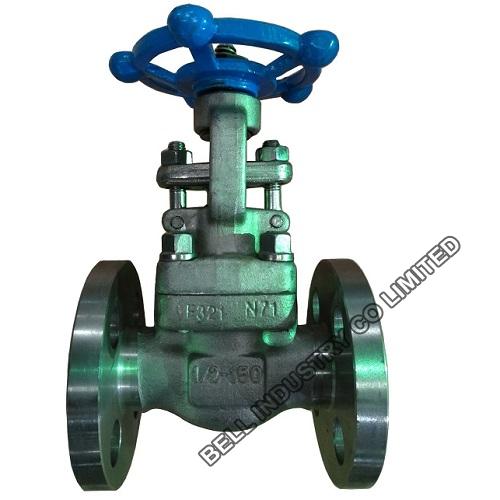

Forged Steel Flanged Gate Valve A105N F11 F22 A182 F304 304L F316 F316L
- Outside Screw and Yoke(OS&Y)
- Two Piece self aligning packing gland
- Basic Design: API 602, ANSI B16.34
- Nominal diameter: 1/2" to 2".
- Description: Forged Steel Flanged Gate Valve F11 F22 A182 F304 304L F316 F316L, designed for heavy duty, industrial and steam applications. Available in ANSI 150 -ANSI 2500, sizes 1/2" to 2"
-
Forged Steel Flanged Gate Valve A105N F11 F22 A182 F304 304L F316 F316L
-Nominal diameter: 1/2" to 2".
-Design & Manufacture: API 602
- Constructions: OS&Y, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet;
-Bore Type: Full Port
-Pressure Ratings: ANSI 150, 300, 600, 900, 1500 & 2500LBS
-End Connections: Flanged (RF, RTJ)
-Other Ends Also Available: Threaded (Screwed, NPT), Butt weld (BW), Socket Weld (SW).
-Materials Available in: A105 (N), LF2, F5, F11, F22, F304, F316, F51, F53 or Equivalent; 8. Various Trim Materials Are Available to Suit Different Service Conditions
-NACE MR 0175 on Request
-Test and Inspection: API598
