SCH Butt Welded Fittings
Butt Welding Long 90 Deg Elbow-Carbon Steel- Stainless steel-Alloy Steel
- Dimension Standards: ANSI-ASME B16.9 - EN 10253, B16.28 - B16.25, BS 1640,JIS B2311,B2312,B2313
- Type: Elbow 30°,45°,60°,90°,180° (Return);
- Radius: 1D (short radius), 1.5D (long radius), 3D, 5D or large radius, etc
- Sizes Available: 1/4" through to 64"
- Description: Butt Welding Long 90 Deg Elbow-Carbon Steel- Stainless steel-Alloy Steel, Dimension Standards: ANSI-ASME B16.9 - EN 10253, B16.28 - B16.25, BS 1640,JIS B2311,B2312,B2313, Sizes Available: 1/4" throug
-

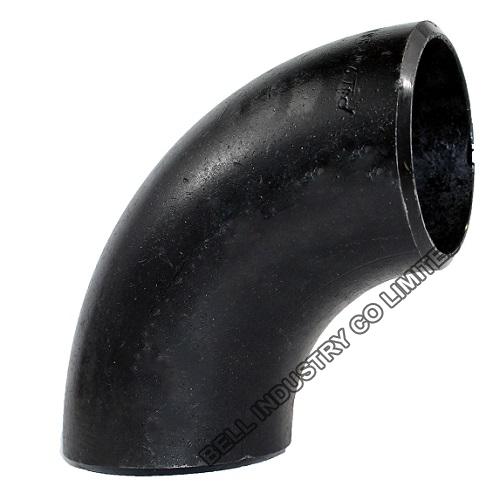

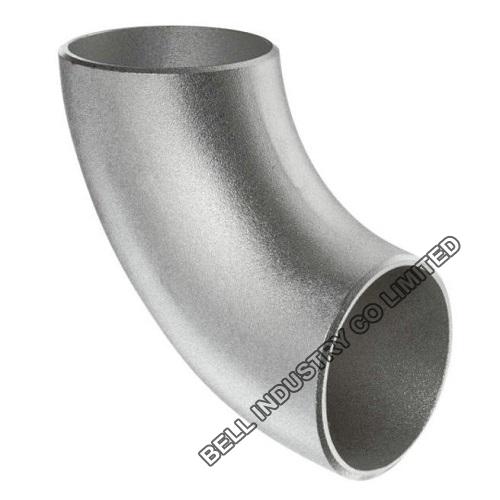

Butt Welding Long 90 Deg Elbow-Carbon Steel- Stainless steel-Alloy Steel
-Dimension Standards: ANSI-ASME B16.9 - EN 10253, B16.28 - B16.25, BS 1640,JIS B2311,B2312,B2313
-Type: Elbow 30°,45°,60°,90°,180° (Return);
-Radius: 1D (short radius), 1.5D (long radius), 3D, 5D or large radius, etc
-Sizes Available: 1/4" through to 64"
-Wall Thickness: Schedule 5s through to Schedule XXS and heavier.
-ANSI Material Grades:
--Stainless Steel: A403WP 304/L/H, 310/H, 316/L/H, 321/H, 347/H, 410, 440, 904L
--Carbon Steel:A234 WPB, WPC
--Low Temperature Steel:A420 WPL6, WPL3
--Alloy Steel:A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
--High Yield:WPHY42, 52, 60, 65, 70
--Duplex & Super Duplex:A815 UNS31803, UNS31254, UNS S32760
--Nickel Alloys:200, 400, 600, 625, 800, 825
--Alloys:ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2
European Material Material Grades:
--S235
--P235GH
--P250GH, P265GH
--16Mo3, 13CrMo4-5
--L290NE, L360NE
--P355QH1
--1.4301, 1.4306, 1.4307, 1.4541
--1.4401, 1.4404, 1.4571
--1.4410 (Superduplex), 1.4462 (Duplex)
--1.4529, 1.4539, 1.4547

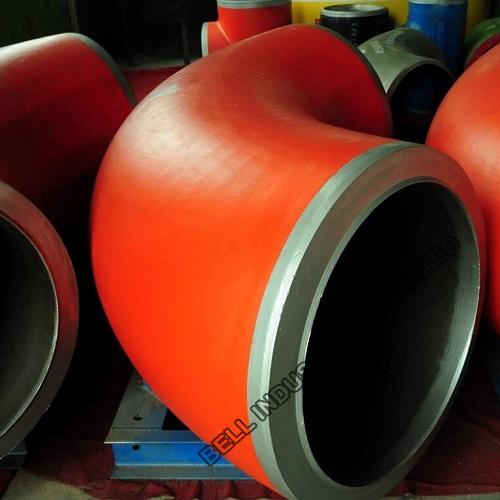

Cutting, bevelling, turning, blasting, coating and marking for all requirements according to customer specification
