Hygienic Pipe Fittings

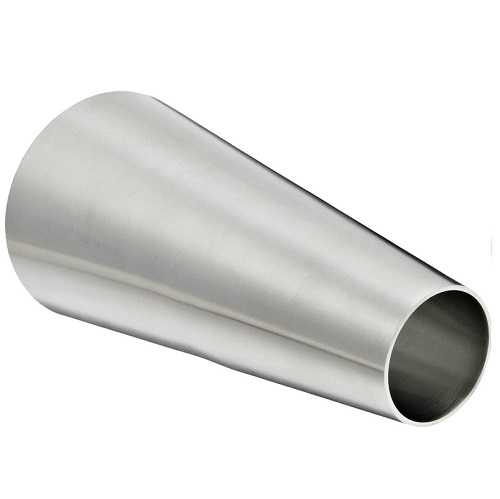

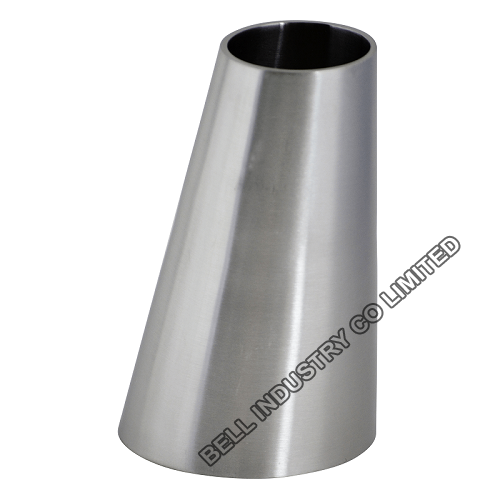

hygienic 3A eccentric welded reducer-Sanitary stainless steel
- Standard: DIN11851, SMS, ISO, 3A, BPE, IDF, AS, BS4825
- Size: DN15-DN300(1/2"÷12")
- Type of reducer:Concentric,Eccentric
- Connection end: welded, clamped, threaded, union type
- Description: Manufacturer of hygienic 3A concentric welded reducer-Sanitary stainless steel,Type of reducer:Eccentric,Standard: DIN11851, SMS, ISO, 3A, BPE, IDF, AS, BS4825
-
Sanitary hygienic 3A eccentric welded reducer-Sanitary stainless steel description:
-Size: DN15-DN300(1/2"÷12")
-Type of reducer:Concentric,Eccentric
-Available Thickness: 1.5MM,1.65MM,2MM,2.5MM,3MM
-Pressure range:0bar÷10bar
-Connection end: welded, clamped, threaded, union type,
-Standard: DIN11851, SMS, ISO, 3A, BPE, IDF, AS, BS4825
-Material: 1.4404/1.4301, SS304/SS316L-Material: SS304, SS316L
-Made from welded pipe or seamless pipe as per requirement
-Surface finish: Mirror, matt type as per requirement
-Available Polishing:180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished
-Inside Ra 0.4, Out side Ra 0.8
-Roundness, thickness equality to meet international food grade standard
Application: It is applied to the stainless steel pipeline system, which is used for milk ,food, juice, beer, pharmacy, etc.
