Hygienic Valves
hygienic pneumatic actuated butterfly valve
- Size: DN15-DN300 , 1/2
- Standard: DIN, SMS, ISO, 3A, IDF
- Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
- Food Grade EPDM seal
- Description: Sanitary Hygienic pneumatic actuated butterfly valves,suitable for use in food, dairy, brewery & general hygienic process applications. size:1"-4"
-

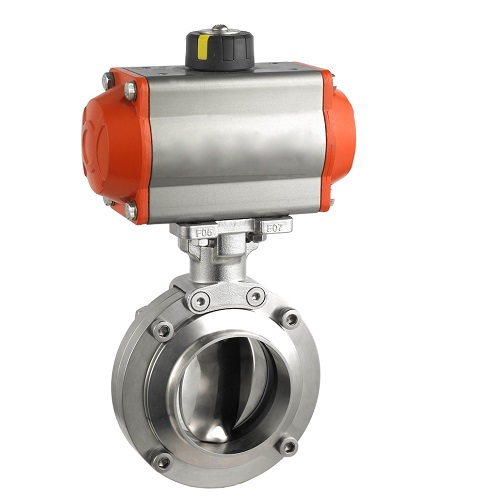

Hygienic pneumatic actuated butterfly valves description:
-Connection end: OD Weld, tri-clamped, union, flange,male threading, female threading
-Standard: DIN, SMS, ISO, 3A, IDF
-Material: 316L Stainless Steel body, stem and disc
-Food Grade EPDM seal
-Inside surface finish: Ra0.4
-Size: DN15-DN300 , 1/2"-10"
-Temperature range: -40°C to 110°C
-Pressure range: Up to 10 Bar (water at 20°C)
-Fully Maintainable Butterfly Valve
-Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries

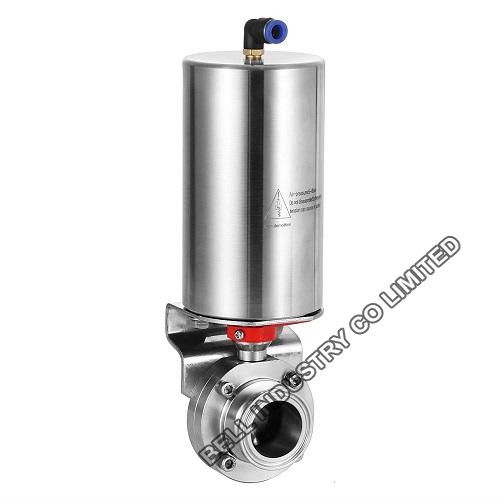

Pneumatic Actuated Spring Return Hygienic Butterfly Valve is suitable for use in food, dairy brewery and general hygienic process applications. A pneumatically actuated sanitary butterfly valve with Stainless Steel body, Food Grade EPDM seal in OD Weld, RJT Male / Male or Clamp End connections, AISI 304 Stainless Steel actuator cylinder and Spring Return Pneumatic Air Actuator
