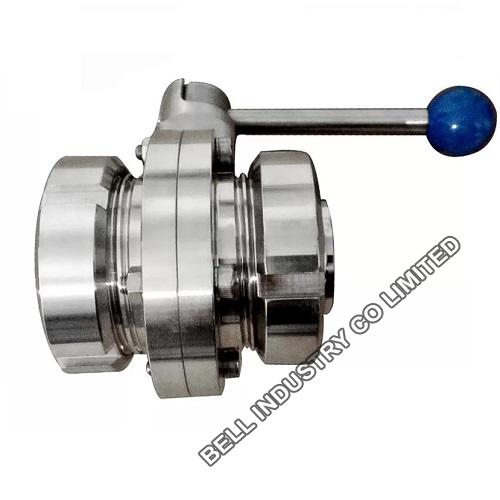

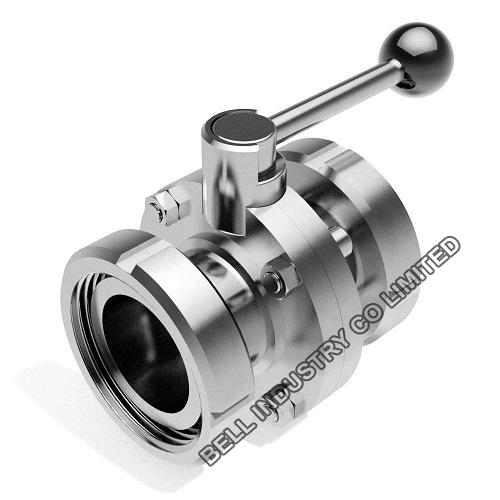

Sanitary Hygienic union end butterfly valves description:
Union End standard
- ISO 2853: ISS / IDF Hygienic stainless steel couplings for food applications
- DIN 11851: Unions screwed pipe fittings for food chemical and pharmaceutical industry
- DIN 11853-1: Hygienic pipe screw connections, short type
- DIN 11864-1: Aseptic screwed pipe connection for welding type union
- BS 4825 PART 4: IDF / ISS Hygienic stainless steel thread couplings for food applications
-Material: 316L Stainless Steel body, stem and disc
-Food Grade EPDM seal
-Inside surface finish: Ra0.4
-Size: DN15-DN300 , 1/2"-10"
-Temperature range: -40°C to 110°C
-Pressure range: Up to 10 Bar (water at 20°C)
-Fully Maintainable Butterfly Valve
-Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
Sanitary Hygienic union end butterfly valves is suitable for use in food, dairy brewery and general hygienic process applications. A pneumatically actuated sanitary butterfly valve with Stainless Steel body, Food Grade EPDM seal in OD Weld, RJT Male / Male or Clamp End connections, AISI 304 Stainless Steel actuator cylinder and Spring Return Pneumatic Air Actuator
