Cast Iron Valves
DIN PN16 Cast Iron Ball Valve-Ductile Iron
- Design and Manufacture: DIN3357
- Size:DN15--DN300
- Pressure Rating: PN16
- BODY: GG25, GGG40
- Description: DIN PN16 Cast Iron Ball Valve-Ductile Iron,Design and Manufacture: DIN3357,Size:DN15--DN300
-

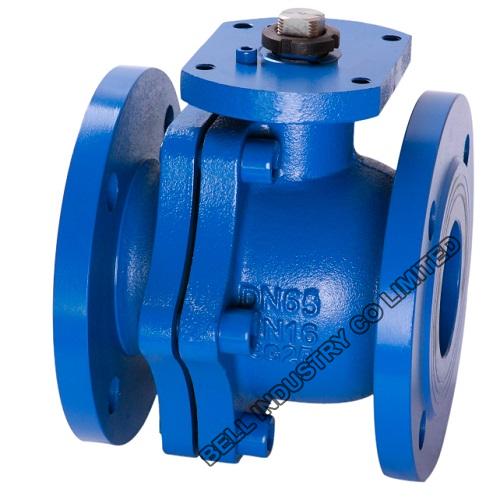

DIN PN16 Cast Iron Ball Valve-Ductile Iron
The DIN ball valve is a full bore quarter turn valve for an on/off application. It can be manual or automatic (electric or pneumatic). The variety of seats and body materials allows it to respond to multiple applications in the industry.
-Design and Manufacture: DIN3357
-Size:DN15--DN300
-Pressure Rating: PN16
-BODY: GG25, GGG40
-Ball: AISI304,
-Seat: PTFE, RPTFE
-Face to Face: DN15-DN100(F4), DN125-DN300(F5)
-Flange Ends:DIN 2533
-Mounting Pad: ISO5211
-Pressure test: ISO5208,DIN3220
-Working temperature:-20 to +120℃
