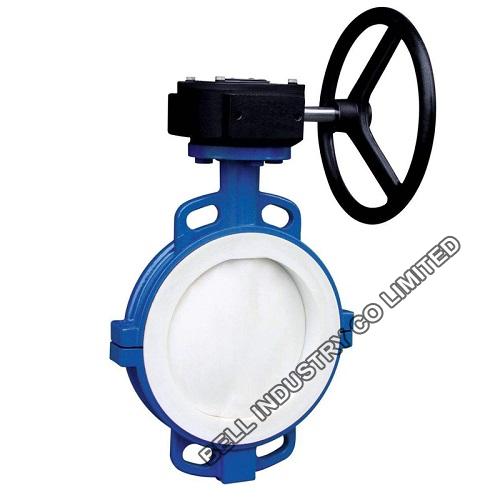

PTFE LINED Wafer Butterfly Valve-PN10-PN16-GGG40
PTEF LINED Wafer type butterfly valve for installation between flanges EN 1092, PN 10/16, ASME class 150. Two-piece body, selfcentring, one-piece valve disc and tem, bubble-tight up to 10 bar.
-Liner material: PTFE, RPTFE, PFA,FEP,PO,etc
-Design & Manufacture:MSS SP-67, API609, EN593
-Flange Connection:DIN PN10/16/25; ANSI B 16.1,BS4504; ISO PN10/16,JIS B 2212/2213, BS 10 table D; BS 10 table E
-Sizes:NPS2"~60"(DN50~DN1600)
-Face-to-face dimension DIN EN 558 line 20 API 609 table 1,ISO5752 series 20, BS5155
-Mounting flange DIN EN ISO 5211
-Test DIN EN 12266 P10 P11 P12 Leakage rate A,API 598
-Working temperature: PTFE:-30-180ºC, PFA:-30-200ºC, FEP:-30-150ºC, PO:-10-80ºC,
Applications & Industries
Water / Sewage
Engineering
Food industry
Chemical and petrochemical industry
Colouring, Varnish, Dyeing factories
