Cast Iron Valves
Double Eccentric Butterfly Valves-PN10-PN16-GGG40
- Design Std:EN 1074, EN593
- Size:DN100--DN2000
- Materials: GGG40 – EPOXY COATED
- Pressure Rating: PN10, 16, 25 or 40 bar according to construction
- Description: High Performance Double Eccentric Butterfly Valves,so called high performance butterfly valves, these valves are characterized by their long service time, low maintenance
-

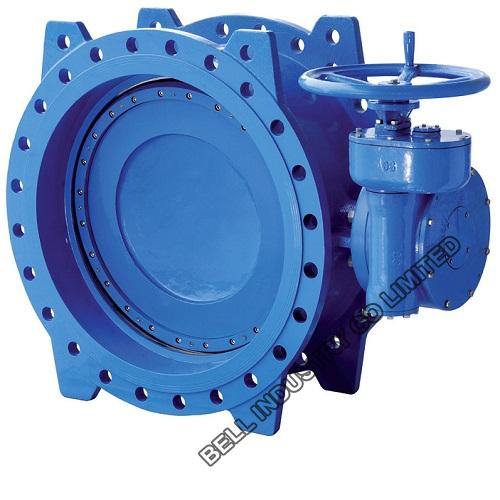

Double Eccentric Butterfly Valves-PN10-PN16
-Design Std:EN 1074, EN593
-Size:DN100--DN2000
-Materials: GGG40 – EPOXY COATED
-Disc seats: EPDM – STAINLESS STEEL
-Pressure Rating: PN10, 16, 25 or 40 bar according to construction
-Seat: stainless steel,EPDM,NBR
-Face to Face: EN 558-1 Series 14, DIN3202 F4
-Flange Drilling: ANSI / EN1092-2 / AS4087 / AS2129
-Replaceable seat, no wrenkling possibility
-Working temperature: –15°C / 80°C
BENEFITS
-Reduced wear on resilient seal
-100% tight shut
-Minimum compression of disc sealing
-Reduced sensitivity for cavitation
-Low pressure loss
-Low operating torque
-Suitable for bi-directional flow
-Easy maintenance
-Easy handling due to reduced weight
Double eccentric butterfly valve, so called high performance butterfly valves, these valves are characterized by their long service time, low maintenance and reduced friction between the seal and the gasket.
