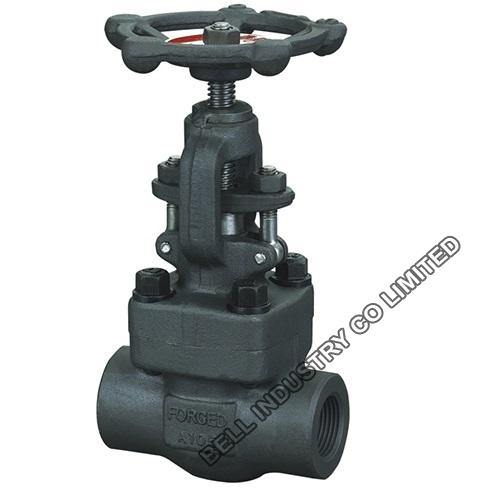

BB NPT Globe Valve-Bolt Bonnet-Forged Steel
- Straight T type, optional of Angle type, Y type, Bellow Sealed type, Screwed Down Non-return valve/SDNR
-Body structure in forged steel body, cast steel body, ductile iron body
-Standard availabe in BS1873, JIS, DIN, Testing Standard API 598/API 6D, Pressure & Temperature: ASME B16.34
-Disc type: Swivel/Plug, Needle, Regulating, SDNR
-Sealing: Metal to metal seat
-Flange RF,FF/BW/NPT/Screwed/Threaded: ASME B16.5, ASME B16.25, EN 1092, AS 2129 T/D, AS 2129 T/E, BS10, ASME B1.20.1, B16.11
Specification
-Size: 1/2"~2"
-Pressures: 150LB~1500LB
-Material: A105. LF2, F304, F304L, F316, Etc
-End: RF, RTJ, BW, SW, NPT
-Features: Bolted or Welded Bonnet OS & Y, Cryogenic Extended Bonnet Pressure Seal
Standard:
-Design: API 602 & ANSI B16.34
-Face to Face: ANSI B16.10
-Test and Inspect: API 598
-End Flanged: ANSI B16.5
-BW End: ANSI B16.25
-NPT End: ANSI B1.20.1
-SW End: ANSI B16.11
The globe valve get short stroke , the openning height of the disc is just one quarter comparing to the gate valve which minimize the friction between the valve disc and seat, increase its ability for resisting the erosion. Besides, there is only one sealing face between the valve body and disc, make the manufacture process with better performance and easier for maintenance.
