Cast Iron Valves

  • ANSI 150 LB Cast Iron Globe Valve-GG25-Cast Iron and Ductile Iron

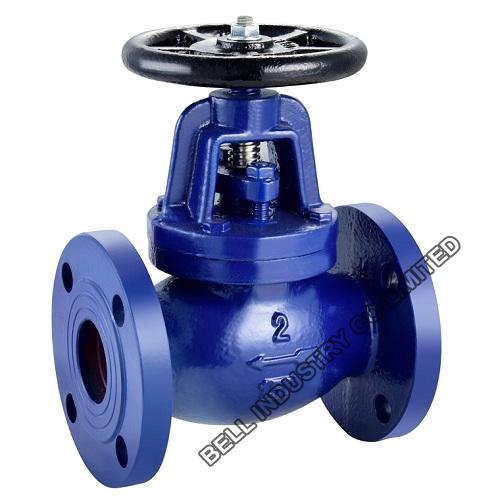

ANSI 150 LB Cast Iron Globe Valve-GG25-Cast Iron and Ductile Iron

ANSI 150 LB Cast Iron Globe Valve-GG25-Cast Iron and Ductile Iron

  • Standard:JIS 10K,ANSI 125/150,PN10/16
  • Body, bonnet: Cast Iron (GG25)
  • Awwa C 509/BS 5163/ASME
  • Size: DN40-DN300
  • Description: ANSI 150 LB Cast Iron Globe Valve-GG25-Cast Iron and Ductile Iron, Flanged ends, bolted bonnet, Cast Iron body & bonnet, Bronze trim. Flange dimensions: ANSI B16.1. Face-to-Face dimensions: ANSI B16.1
  • INQUIRY   EMAIL
ANSI 150 LB Cast Iron Globe Valve-GG25-Cast Iron and Ductile Iron


-Size: DN40-DN300
-Standard:JIS 10K,ANSI 125/150,PN10/16
-Body, bonnet: Cast Iron (GG25)
-COATING:EPOXY ELECTRO STATIC POWDER
-FLANGED: ANSI B16.5
-Shell wall thickness: BS 1873
-Pressure Testing: API 598
-Working temperature: Max. +420°C
-Flanged ends, bolted bonnet, Cast Iron body & bonnet, Bronze trim.
-Flange dimensions: ANSI B16.1
-Face-to-Face dimensions: ANSI B16.10
-Testing & Design: MSS-SP-85
