Stainless Steel Screwed end Valves

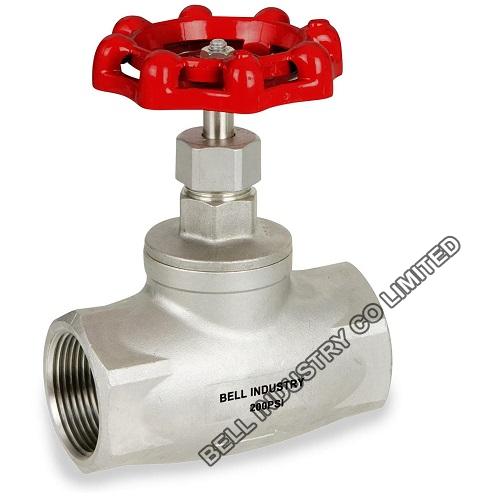

Stainless Steel Globe Valve - Screwed BSPP

BSP screwed end connections.
ASTM A351 CF8M 316 Stainless Steel Body, Bonnet and Disc.
Size: /2"-3"(DN15-DN80);
Investment Casting
Description: Stainless Steel Screwed Globe Valve Description. Size range:1/2 inch to 3 inch(DN15 to DN80). Pressures up to 13 BAR (200 psi).Temperatures up to 180°C. Great for water, oil, gas & steam.
INQUIRY EMAIL

Stainless Steel Globe Valve - Screwed BSPP Description:

-Size: /2"-3"(DN15-DN80);
-Body Material: CF8(304),CF8M(316),CF3(304L),CF3M(316L).
-316 Stainless Steel Stem and Trim. Ductile Iron painted Handwheel.
-PTFE Gland Packing and Bonnet Seal.
-Screwed Bonnet. Non Rising Stem. Metal to Metal Taper Seat.
-200 psi/g pressure rated.
--Working Temperature:-20℃-200℃ (-4℉-392℉).
-Threaded end:ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226(BSP).
