Stainless Steel Screwed end Valves

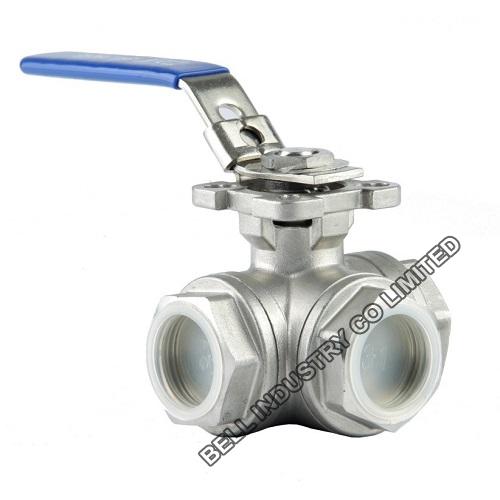

Stainless Steel 3-Way Threaded Ball Valve
- Full port, 1/2"-4"(DN15-DN100)
- T Port or L port Design
- Investment casting
- Thread type: ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226
- Description: Stainless Steel 3 Way Ball Valves, Screwed end. 3 way valves are used as diverter or selector valves but are mainly used for diverting.
-
Stainless Steel 3-Way Threaded Ball Valve Description
L or T port for configuration;
4 valve seats;

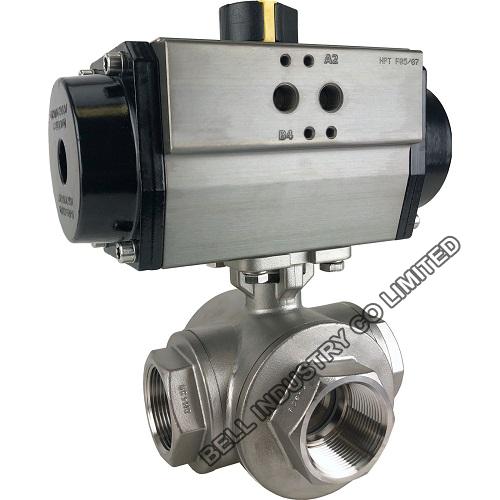

Mounting Pad: ISO 5211 direct mounting for top actuator;
Material: CF8(304),CF8M(316),CF3(304L),CF3M(316L);
Seat Material:PTFE, RPTFE,PPL;
Float Ball type;
Full port, 1/4"--2" (DN8-DN50);
Working Pressure:1000WOG (PN63),150LB-600LB;
Working Temperature:-20℃-200℃ (-4℉-392℉);
Investment casting;
Blow-out proof stem;
Anti-static device (option);
Locking device;
Thread type: ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226(BSP);
