Forged steel Socked-Threaded Fittings

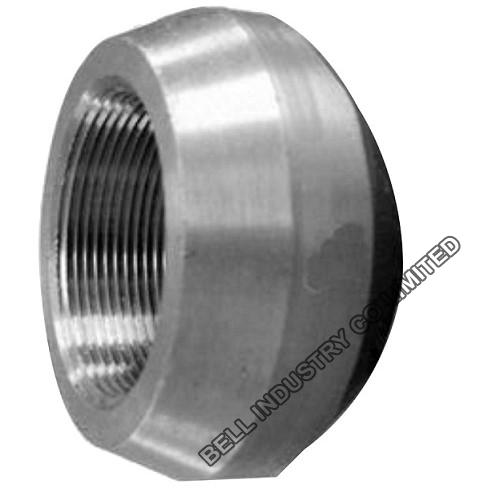

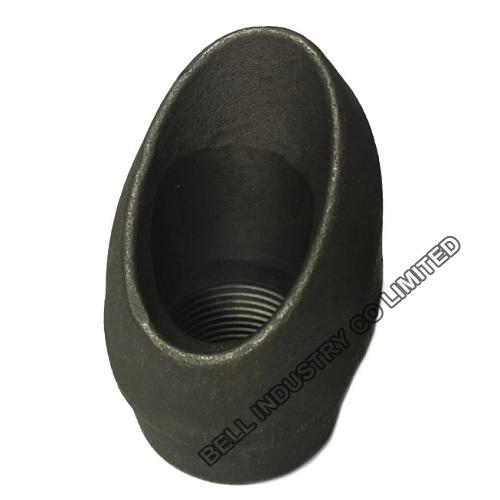

Forged steel Threaded outlet

Standards:(ASME/ANSI B16.11, MSS-SP-97, MSS-SP-79,JIS B2316, BS 3799etc)
Thickness: 2000LB, 3000LB, 6000LB( SCH80, SCH160, XXS)
Stainless steel: ASTM A182 F304, F304L,F316,F316L, F317L, F321, F321H, F347, F347H, F310, F44 F51,S31803, A182, F43,S32750
Description: Forged steel Threaded outlet, 1/8"-4"(DN6-DN100), Welded, threaded, BW, SW
INQUIRY EMAIL

Forged steel Threaded outlet

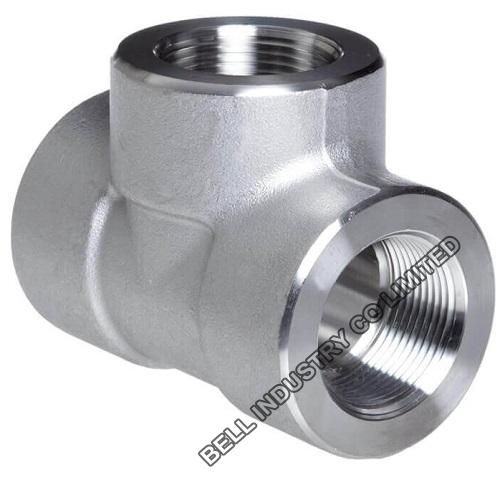

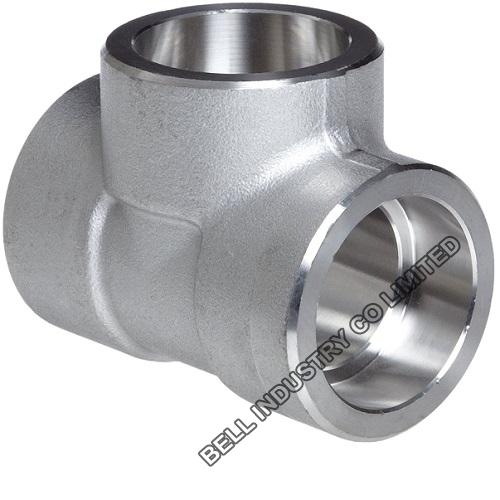

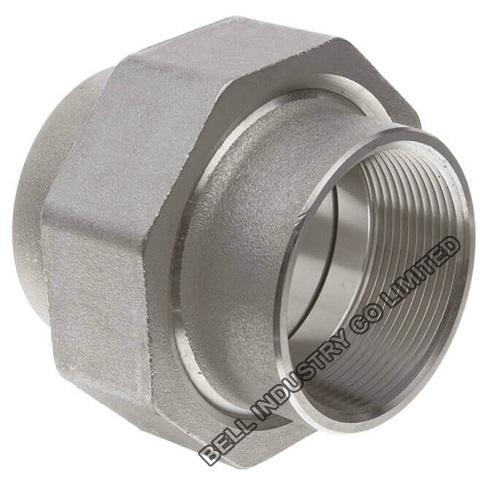

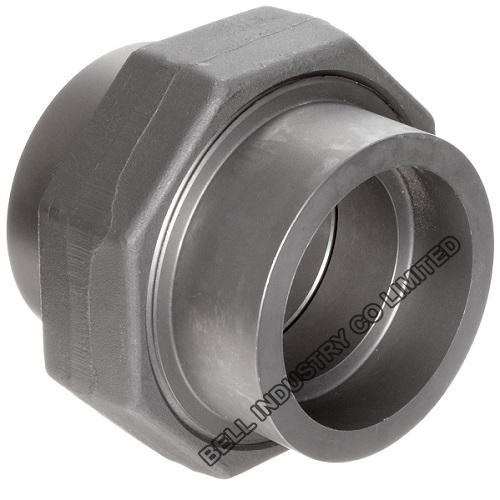

-Type:Elbow, Tee, Cross, Coupling, Half Coupling, Cap, Plug, Bushing, Union, HEX. Nipple, Swage nipple, Bull Plug, Street Elbow, Boss, Reducer Insert and Out-let…etc
-Connection: NPT or BSP Screwed, Socket-Weld, Butt-welding
-Size: NPS 1/8"--4" (DN 6-100)
-Rating Pressure
--Threaded End – 2000 / 3000 / 6000 LBS.
--Socket-weld End – 3000 / 6000 / 9000 LBS.
--Butt-weld End – SCH40 / SCH80 / SCH160 / XXS.

-Specifications
--Dim. Spec. :
ASME B16.11-2009 (Revision of ASME B16.11-2005) MSS – SP – 79, 83, 95, 97 and BS3799.
ANSI / ASME B1.20.1-1983 NPT
--Material Spec. :
ASTM A105, A350 LF2, A106, A312, A234, A403
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
--Size of Raw Material: DIA. 19~85mm Round Bar.
