Forged steel Socked-Threaded Fittings

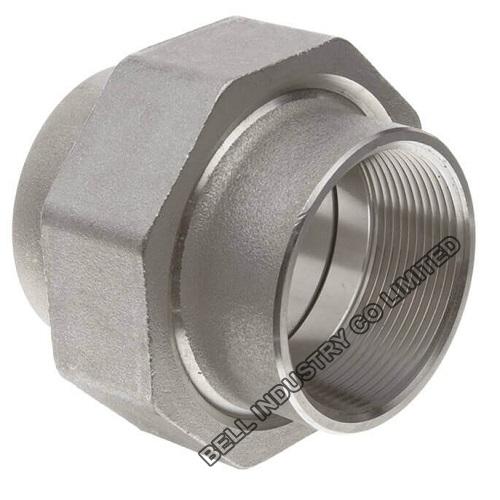

Forged steel Screwed union-3000LB-1500LB

Size: NPS 1/8
Rating Pressure : 2000 / 3000 / 6000 LBS.
Material Spec. : ASTM A105, A350 LF2, A106, A312, A234, A403 ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
Description: Forged steel Screwed union-3000LB-1500LB, STANDARD: MSS SP 83, MATERIAL: ASTM A105, A350lf2, A182 F316/F316L, F304/F304L , F321, F347H, F11, F22, F22, F12, F5, F9 F91, And So On
INQUIRY EMAIL

Forged steel Screwed union-3000LB-1500LB

-Type:Elbow, Tee, Cross, Coupling, Half Coupling, Cap, Plug, Bushing, Union, HEX. Nipple, Swage nipple, Bull Plug, Street Elbow, Boss, Reducer Insert and Out-let…etc
-Threaded: NPT or BSP Screwed, Socket-Weld, Butt-welding
-Size: NPS 1/8"--4" (DN 6-100)
-Rating Pressure
--Threaded End – 2000 / 3000 / 6000 LBS.
--Socket-weld End – 3000 / 6000 / 9000 LBS.
--Butt-weld End – SCH40 / SCH80 / SCH160 / XXS.

-Specifications
--Dim. Spec. :
ASME B16.11-2009 (Revision of ASME B16.11-2005) MSS – SP – 79, 83, 95, 97 and BS3799.
ANSI / ASME B1.20.1-1983 NPT
--Material Spec. :
ASTM A105, A350 LF2, A106, A312, A234, A403
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
--Size of Raw Material: DIA. 19~85mm Round Bar.

-Marking
--Carbon and Alloy Steel: Marked by stamping.
--Stainless Steel: Marked by electro-etched, jet printed or stamping.
--3/8” under: Brand only.
--1/2” to 4”: Marked with brand, material, heat code, B16 (For ASME B16.11 product), pressure and size.

-Finishing: Carbon steel: Galvanized or black. Stainless steel: Pickled.
