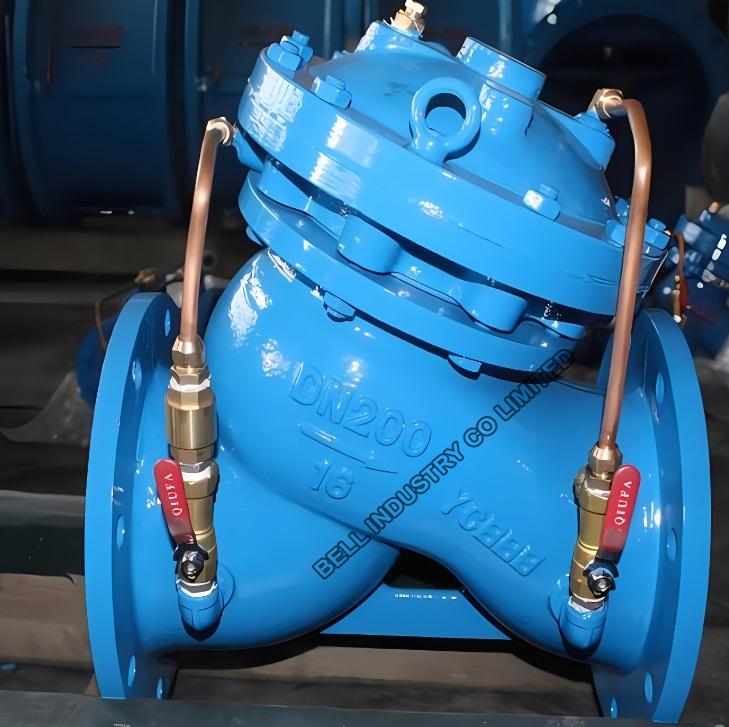

J145X electric remote water control valve by the main valve and control valve and takeover system, which is a hydraulic driven solenoid valve control valve, mainly through the solenoid valve to receive open or closed signal and control valve switch.
J145X electric remote water control valve body adopts the straight flow valve body, the main valve control room is diaphragm type or piston type double control room structure, the control room is increased by one than the general hydraulic control valve, increase the control function of the main valve, to achieve the pump outlet slowly open, fully open, slowly closed, cut off and other multifunctional control, to achieve a valve, a regulation of the pump outlet multifunctional control. According to electrical signal or manual operation, make the valve open or close, accurate and fast control reaction. The closing speed is adjustable and the valve closes smoothly without pressure fluctuation. Adopt three-way solenoid valve, easy maintenance.
J145X electric remote water control valve is installed in all kinds of water supply, construction, petroleum, chemical, metallurgy, drainage, food, power station, nuclear power and other fields of the pipeline, according to the electrical signal or manual operation, so that the valve open or close.
J145X electric remote water control valve features: accurate and fast control response, the closing speed can be adjusted, the valve closed smoothly without pressure fluctuations, the use of three-way solenoid valve, simple maintenance.
J145X electric remote water control valve Main technical parameters：
1. Nominal pressure: 1.0MPa, 1.6MPa, 2.5MPa
2. Applicable medium: water
3, medium temperature: 0~80 C
4. Description of solenoid valve: voltage: AC 220V DC: 24V
Materials: carbon steel ASTM A216 WCB, WCC; Cast or Ductile iron A126, GG25, A536 or GGG50, Low Carbon Steel LCB, LCC, Alloy Steel WC6, WC9, C5, Stainless Steel CF8, CF8M, CF3, CF3M, Duplex & Super Duplex Steel A890 GR.4A,5A or F51, Special Materials in Monel, Alu. Bronze C95800, 95600 , Inconel, Alloy 20 etc.
