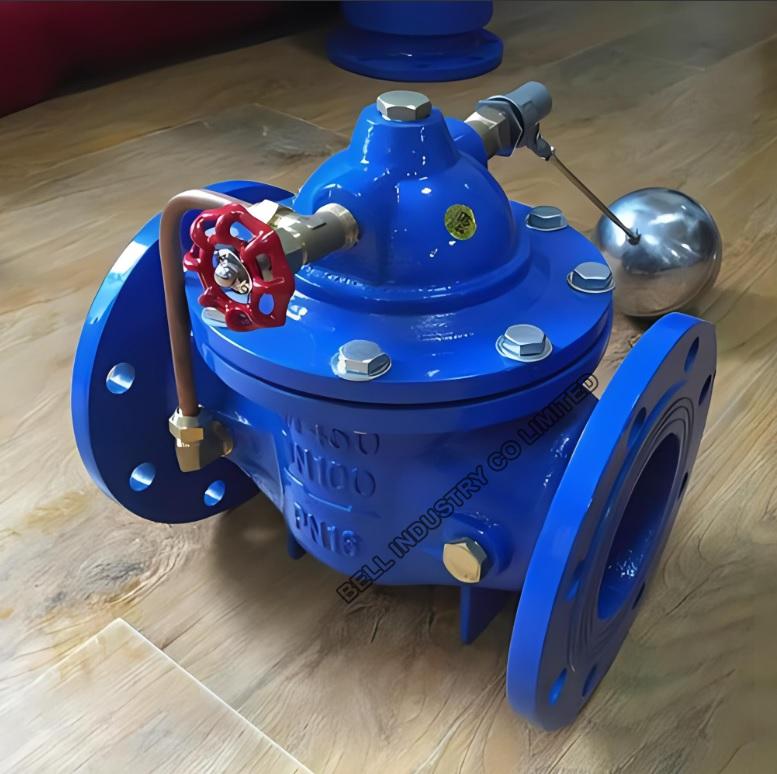

100X remote control float valve, Hydraulic control valve Feature:
On/Off service
Low cavitation damage
Double chamber
Full-powered opening & closing
Decreased pressure loss
No throttling noise
Non-slam closing characteristic
Protected diaphragm
External installation
Easy access to valve & float
Easy level setting
Less wear and tear
In-line serviceable - easy maintenance
1. Body/Bonnet: GGG50 or Stainless Steel
2. Spring: SS304
3. Stem: SS / Bronze
4. Disc Retainer: DI/SS/Bronze
5. Seat: SS/Brass/Bronze
6. Seal Rings: NBR/EPDM/Viton
7. Pilot: Stainless Steel or Brass
8. Pipe or Tubes: Coppe or Stainless Steel
9. Working Pressure: PN10/16/25
10. Connection: Flanged acc. To EN1092.2, ISO 7005-2, ANSI/JIS/ AS2129
11. Epoxy Resin Coated to 300 microns inside & outside
12. Anti-cavitation Solution
