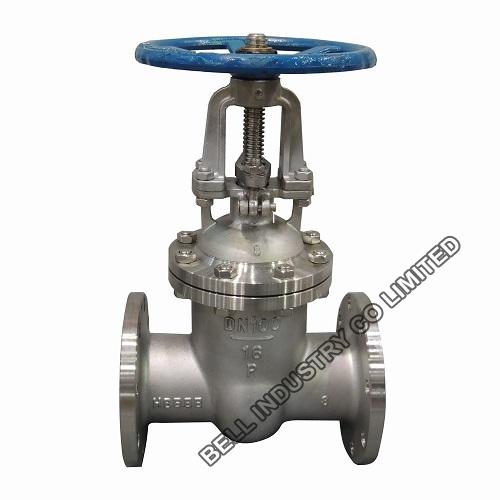

DIN F4/F5/F7 Stainless steel flanged gate valve description:
-Specification Details
-Design Std: DIN 3352, DIN EN 12516-2
-Size:DN50--DN600
-Body: Cast Steel WCB, GS-C25, Stainless Steel A351-CF8, CF8M, CF3, CF3M
-Wedge: Stainless steel 304,316
-Pressure Rating: PN25, PN40
-Seat: Stainless Steel - AISI 420, 304,316
-Bolted Bonnet; Outside Screw & Yoke
-Face to Face:EN558-1 Series 15 (DIN 3202 F5)
-Flanges drilled: DIN2543-DIN2550, EN1092-1
-Welding Connection:DIN3239, EN12627
-Leakage rate B according to DIN3230, ISO5208 EN12266
-Temperature range: -10°C/+180°C
