Stainless Steel Flanged Valves

  • Stainless steel 3 piece flanged ball valve

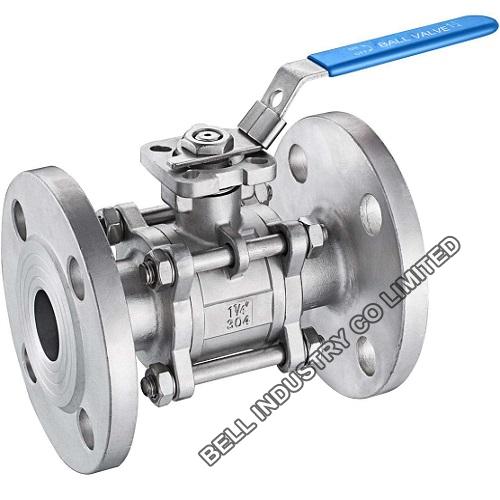

Stainless steel 3 piece flanged ball valve

Stainless steel 3 piece flanged ball valve

  • High quality investment casting body and caps
  • Pressure rating:PN16-PN40
  • 15% reinforced glass fibrous Teflon seats
  • Blow-out proof stem S/S 316, adjustable stem packing
  • Description: Manufacturer of Stainless steel 3 piece flanged ball valve, Face to Face length: DIN3202 F1, Pressure rating: PN16-PN40;
  • INQUIRY   EMAIL
Stainless steel 3 piece flanged ball valve Specification Details

-Design:DIN3357,EN12516
-Size:DN15--DN150
-Pressure Rating: PN16--PN40
-Body: S.S 304, S.S 316, 1.4401,1.4409
-Ball: AISI316,
-Seat: PTFE, RPTFE
-Pressure Rating: ANSI Class 150
-Face to Feace:DIN3202-F1, EN558 Series-1
-End Flange:DIN2501,PN10-40
-Mounting Pad: ISO5211
-Pressure & temperature: ASME / ANSI B16.34
-Inspection Testing:DIN3230/3,EN12266
-Fire Safe Test: API 607/API6FA
-Temperature range: -10°C/+380°C
