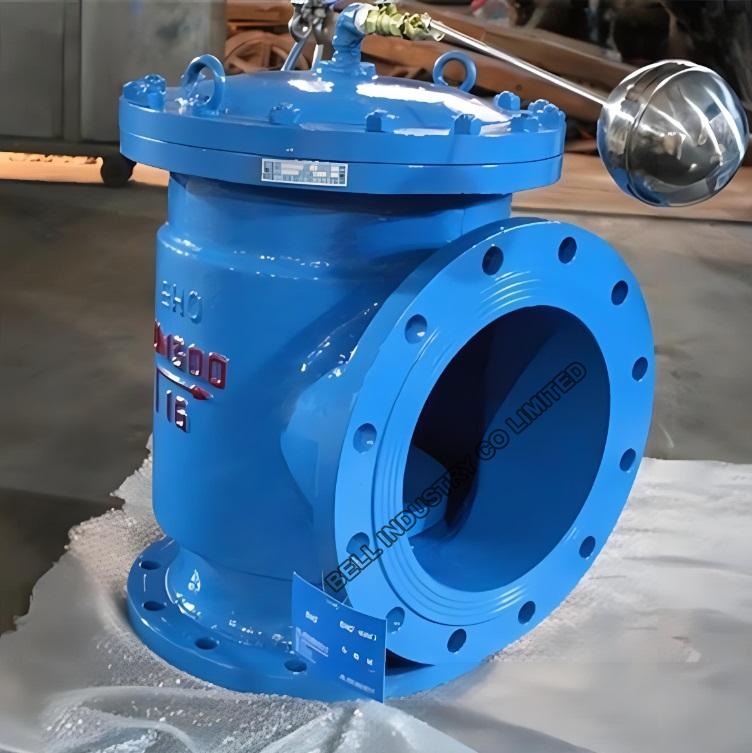

Angle Type Water Level Control Valve

Angle Type Piston Actuated Hydraulic Level Control Valve
MODEL NO. H142X

Δ The model H142X Hydraulic Level Control Valve is popularly used in automatic water supply system of all kinds of water tanks, reservoirs and water towers in mining industries, factories and urban infrastructure building. It also can work as control valve for recycling water supply system of boilers with normal pressure.
It controls reservoir filling to maintain constant water level.
When water level in the reservoir declines, the top float ball valve will discharge water from upper chamber. Then high pressure of inlet pipeline pushes the piston upwards which leads to water supply process.
When water level in the reservoir rises, the top float ball valve closes and the piston move downwards which shuts off the valve and stops water supply.

PART NAME: Material
Body& Bonnet: Tin bronze, stainless steel,
Cast iron, Dutil Iron, Cast steel etc
Trim: Tin bronze, stainless steel, Cast iron, Dutil Iron, Cast steel etc
