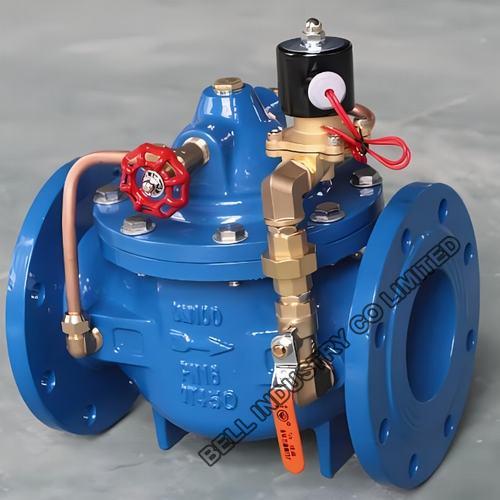

600X Hydraulic Electric Control Valve

600X Electric control water valve manufacturer, factory and supplier. 600X Electric control water valve is a hydraulic operated valve with a solenoid as the guide valve. 600X Electric control water valve is commonly used in automatic control in water supply and drainage and industrial system. The control reaction is accurate and fast, and remote open and closing pipeline system according to the electrical signal to realize remote operation. It can replace gate and butterfly valves for large electric operating system. 600X Electric control water valve closing speed is adjustable and closed smoothly without pressure fluctuations. 600X Electric control water valve is small in volume, light in weight, easy in maintenance, easy to use, safe and reliable. Solenoid valve can be selected from AC power 220V, or DC power 24V, can be selected often open or often closed type according to various occasions.

Nominal Diameter: DN20-DN800;
Nominal pressure: PN10-PN25;
Application temperature: 0-80℃；
Suitable medium: Water;

Part name------ Material
Body: Gray iron, ductile iron, cast steel
Gate: Ductile iron + EPDM or NBR
Allen bolts: Carbonization process
Seals: NBR,EPDM
Bonnet: Gray iron, ductile iron, cast steel
Stem: Stainless steel
O-ring seals: NBR
Thrust bearings: Tin bronze
Bolt: Carbon steel, alloy steel
Gland: Ductile iron, cast steel
Dust Cover: NBR
Hand wheel: Malleable iron
