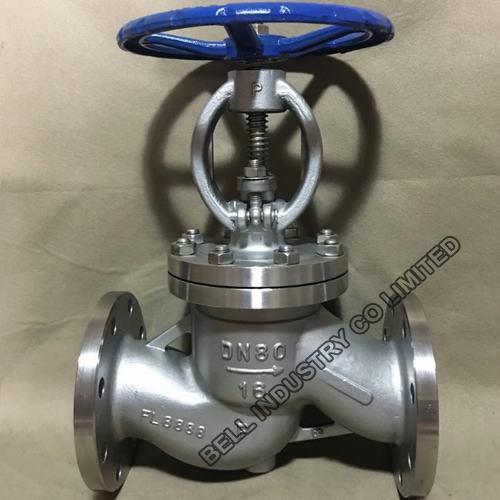

throttling cone globe valve

throttling cone globe valve with Conical Disc with regulating disc

Nominal size 2"~48"(DN50~DN1200)
Nominal pressure Class150~2500(PN10~PN420)
Standard: BS1873, ASME B16.34
Body material WCB, WC6, WC9, LCB, LCC, C5,C12, CF8, CF8M, CF8C, bronze, Inconel, monel
End connection RF, BW, RTJ,
Operation handwheel, bevel gear, Pneumatic, Electric, Hydraulic

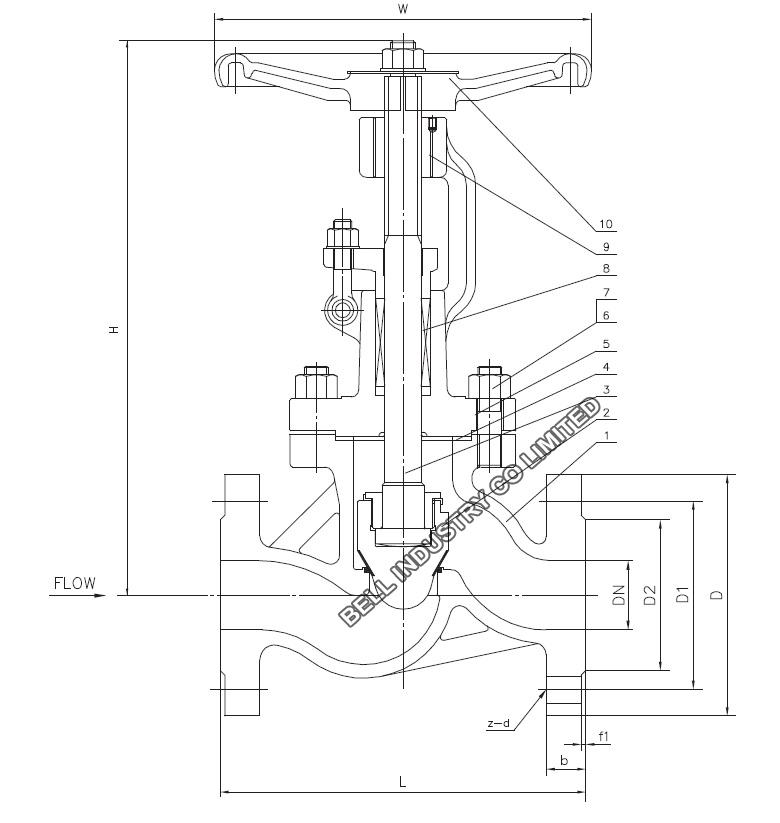

The opening and closing parts of the globe valve are plug-shaped discs, the top of the seal is a plane or a sea cone surface, and the disc moves linearly along the center line of the valve seat. It can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media. Therefore, this type of shut-off globe valve is very suitable for shut-off or regulation and throttling.
