Gasket And Packing

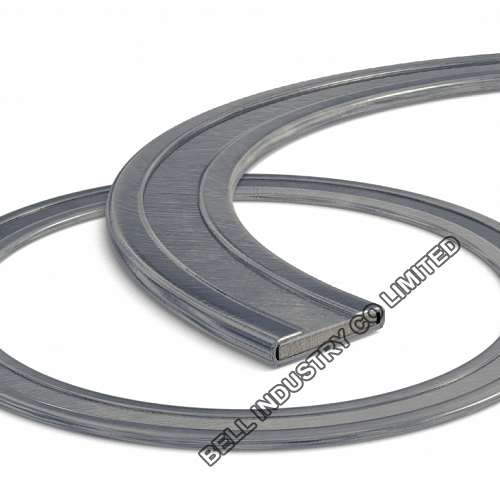

METAL JACKETED GASKETS
- Filler materials: Non-asbestos fiber sheet, NBR/aramid fiber sheet, Graphite, Ceramic
- Metal jacket materials: Soft Aluminium, Soft Copper, Brass, Carbon steel, 304 or 304L stainless steel, 316 or 316L stainless steel, 321 stainless steel, Hastelloy® B2 or C-276, Inconel® 600, Monel® 40
- Description: METAL JACKETED GASKETS, Metal Jacketed gaskets consist of a metallic outer shell with either a metallic or non-metallic compressed fibre filler
-
Metal jacket gaskets consist of a soft filler encapsulated in metallic material. The filler material provides the gasket with compressibility and resilience while the jacket confers compressive strength and blow out resistance
Metal-jacketed gaskets consist of
-Metallic outer shell with an asbestos-free filler
-The filler material gives the gasket resilience
-The metal jacket protects the filler and resists pressures, temperatures, and corrosion
Filler materials: Non-asbestos fiber sheet, NBR/aramid fiber sheet, Graphite, Ceramic
Metal jacket materials: Soft Aluminium, Soft Copper, Brass, Carbon steel, 304 or 304L stainless steel, 316 or 316L stainless steel, 321 stainless steel, Hastelloy® B2 or C-276, Inconel® 600, Monel® 400
