DIN Flange PN6-PN10-PN16-PN25-PN40-PN64-PN100-PN160-PN250-PN400

DIN Flange PN6-PN10-PN16-PN25-PN40-PN64-PN100-PN160-PN250-PN400

-Types:

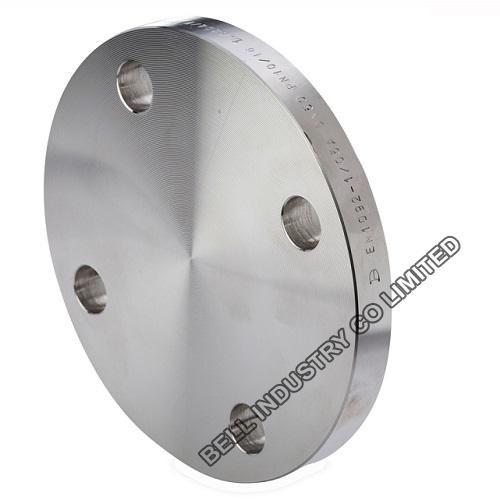

DIN Blind Flange: DIN2527(PN6-PN100)

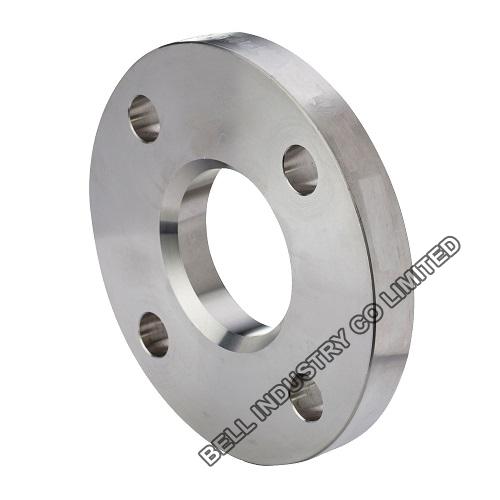

DIN Flat Flange-DIN Slip on flange: DIN2573(PN6), DIN2576(PN10), DIN2502(PN16), DIN2503(PN25,PN40)
DIN Weld neck flange: DIN2630(PN1,PN2.5), DIN2631(PN6), DIN2632(PN10), DIN2633(PN16), DIN2634(PN25), DIN2635(PN40),

DIN2636(PN64), DIN2637(PN100), DIN2638(PN160), DIN2628(PN250), DIN2629(PN320), DIN2627(PN400)
DIN Lap Joint Flange: DIN2641(PN6),DIN2642(PN10)
DIN Loose flange(DIN SO flange with plain collar): DIN2652(PN6),DIN2653(PN10),DIN2655(PN25),DIN2656(PN40)
DIN Loose flange with neck: DIN2673(PN10)
DIN oval plain threaded flange: DIN2558
DIN oval flange with neck threaded: DIN2561(PN10,PN16)

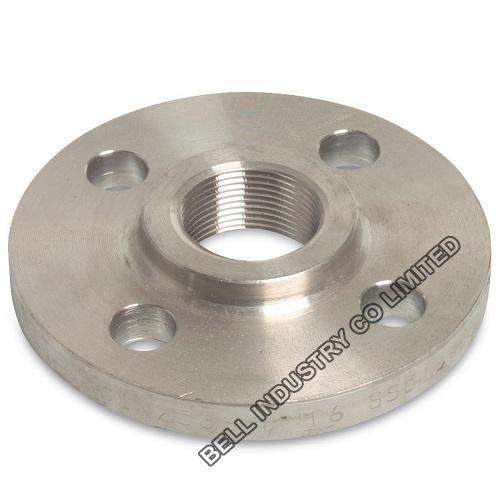

DIN threaded flange with neck: DIN2565(PN6),DIN2566(PN10,PN16),DIN2567(PN25),DIN2568(PN64),DIN2569(PN100),
DIN Long neck welding flange: DIN28115(PN10,PN25)
DIN Hubbed SO flange for welding: DIN86029(PN10),DIN86030(PN16)


-Material: F304/F304L/F316/F316L/F321/F347H/F316Ti/s3275/904L/S31803/2205/F51.
-Size: 1/2" ~ 64"(DN15 mm ~ 1600 mm)
