DIN F6 Swing check valve with counter weight
- DIN F6 swing check valve
- SWING CHECK VALVE WITH COUNTERWEIGHT
- STAINLESS STEEL CHECK VALVE
- NON Return valve with counter weight
- Description: DIN F6 Swing check valve with counter weight
FLANGED SWING CHECK VALVE WITH COUNTERWEIGHT
MATERIAL:
BODY/COVER/DISC: CF8M
ARM/COUNTERWEIGHT: 316
PIN: SS420
BODY SEAT: 316
SEALING/GASKETS: PTFE
-
FLANGED SWING CHECK VALVE WITH COUNTERWEIGHT
DESIGN STD: DIN3356, DIN3202 F6;
MATERIAL:CF8M(316L),1.4308,1.4401;
Face to face: EN558-1/line 48 (DIN 3202 F6);
Mounted lever + counterweight outside shaft
Check valves with large sizes mounted with hydraulic damping cylinder
Test and inspection: EN12266-1.
MATERIAL:
BODY/COVER/DISC: CF8M
ARM/COUNTERWEIGHT: 316
PIN: SS420
BODY SEAT: 316
SEALING/GASKETS: PTFE
BOLTS/NUTS: SS

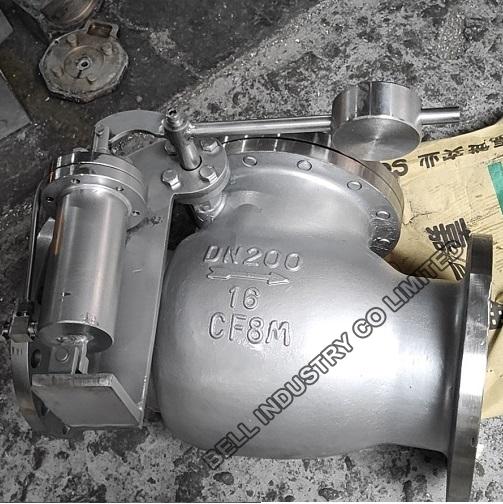

Name: swing type check valve with lever + counterweight.
Design: DIN 3356.
Body: 1.4308.
Nominal size: DN200.
Nominal class: PN16.
Connection ends: RF Flanged ends.
