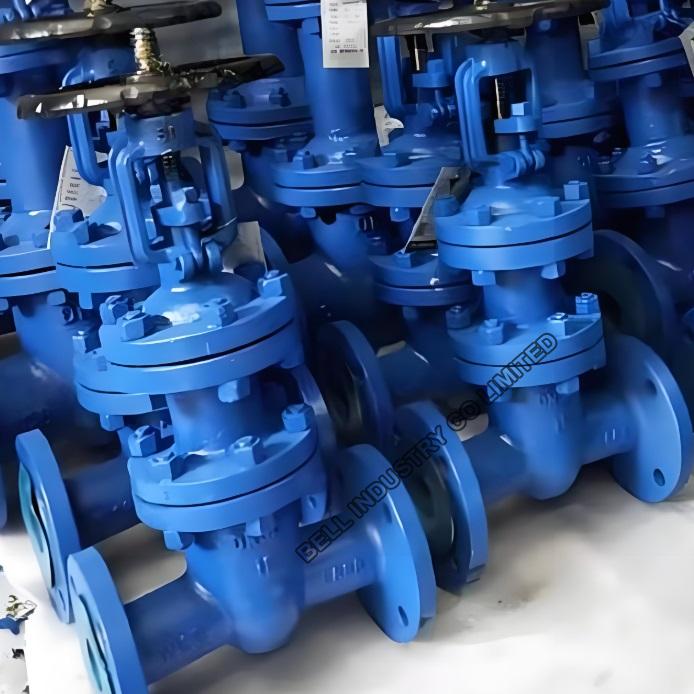

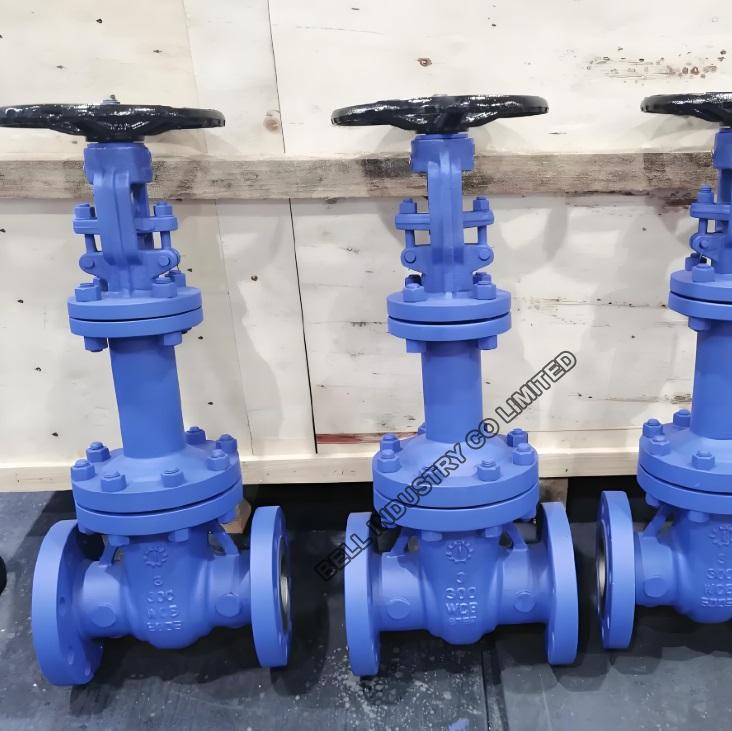

DIN BELLOW SEAL GATE VALVE
- DIN BELLOW SEAL GATE VALVE
- bellow seal gate valve
- Description: DIN BELLOW SEAL GATE VALVE
-
Description:
OVAL BODY,BOLTED BONNET,OUTSIDE SCREW AND YOKE,RISING STEM,NON RISING HANDWHEEL,FLEXIBLE WEDGE,BELLOW SEALED GLOBE VALVE IN FORGED AND CAST STEEL STRAIGHT PATTERN WITH BOLTED BONNET
RISING,NON ROTATING STEM INCREASED STEM NUT POSITIONING,BLOWOUT SAFETY BONNET SEALING
FLANGE- OR BW-ENDS WELDED SEAT SEAT IN STELLITE OR CR-STEEL SELF ADJUSTED GLAND
Materials:GS-C25,WCB,CF8M,CF8,CF3,CF3M;
Size: DN40~DN300;
Class:PN16~PN40;
Connection:RF,RTJ;
Construction Type: BB-BG-OS&Y;
Design: EN 12516, DIN 3352
Face to face: EN 1092 - EN 558
Flanges: EN 12627,EN 1092
Testing: EN 12266
Rating: EN 1092
Marking: DN,CE, PN, HEAT NO
