Stainless Steel Screwed end Valves

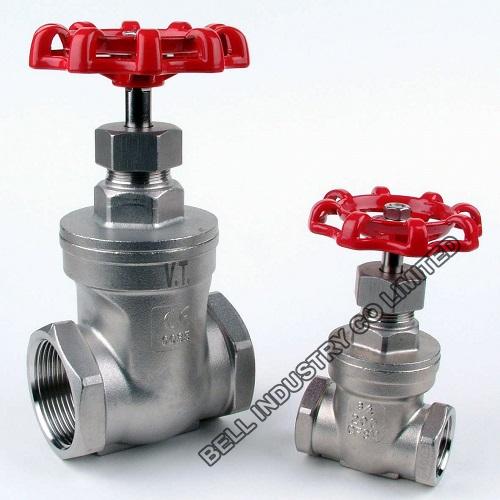

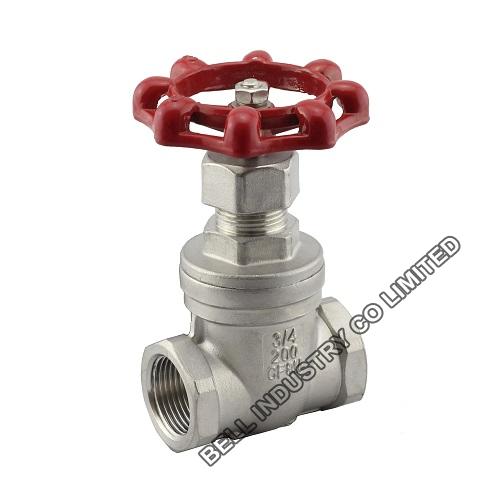

BSP Screwed Stainless steel gate valve
- Full Port Design
- 200PSI(10Bar) Pressure Rating
- 1/2" -4" (DN15-DN100)
- BSP or NPT Screwed End
- Description: BSP Screwed Stainless Steel Gate Valve suitable for industrial applications, fluids and aggressive chemicals. Available in Screwed BSP, 200 PSI(10Bar),DN10 to DN50
-
Stainless Steel Globe Valve - Screwed BSPP Description:
-Size: 1/2"-4"(DN15-DN100);
-Body Material: CF8(304),CF8M(316),CF3(304L),CF3M(316L).
-316 Stainless Steel Stem and Trim. Ductile Iron(Aluminium alloy) painted Handwheel.
-Screw + Gland Stainless Steel 316
-Screwed Bonnet. Non Rising Stem. Metal to Metal Taper Seat.
-200 psi/g pressure rated.
--Working Temperature:Max Temperature 176ºC.
-Threaded end:ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226(BSP).
