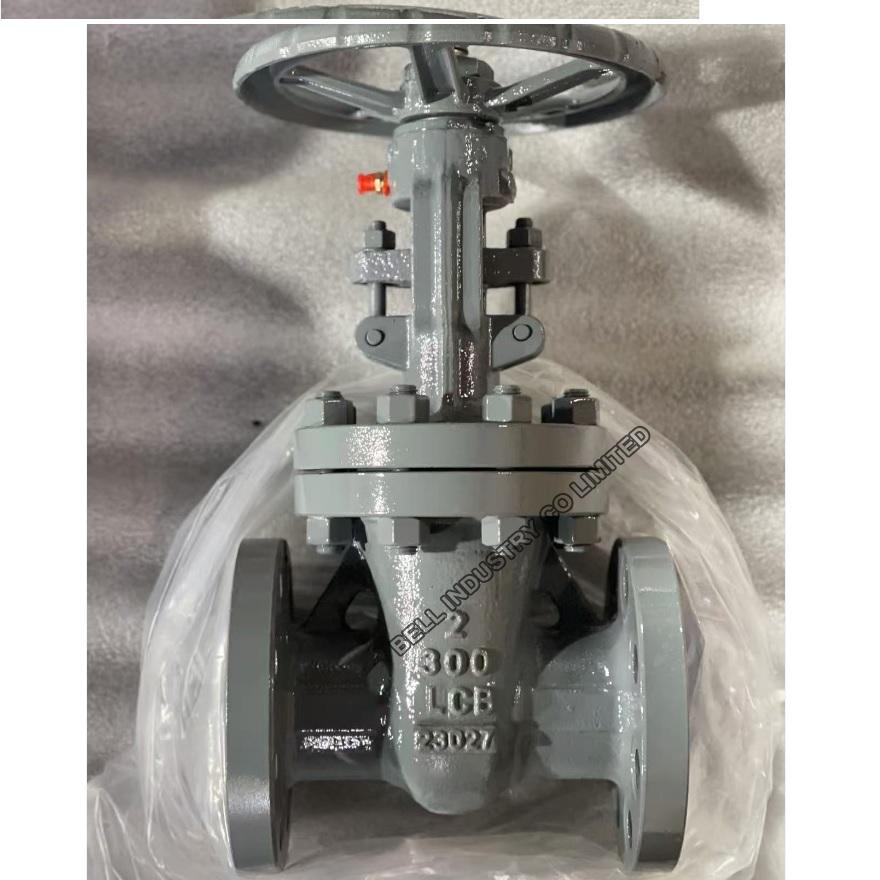

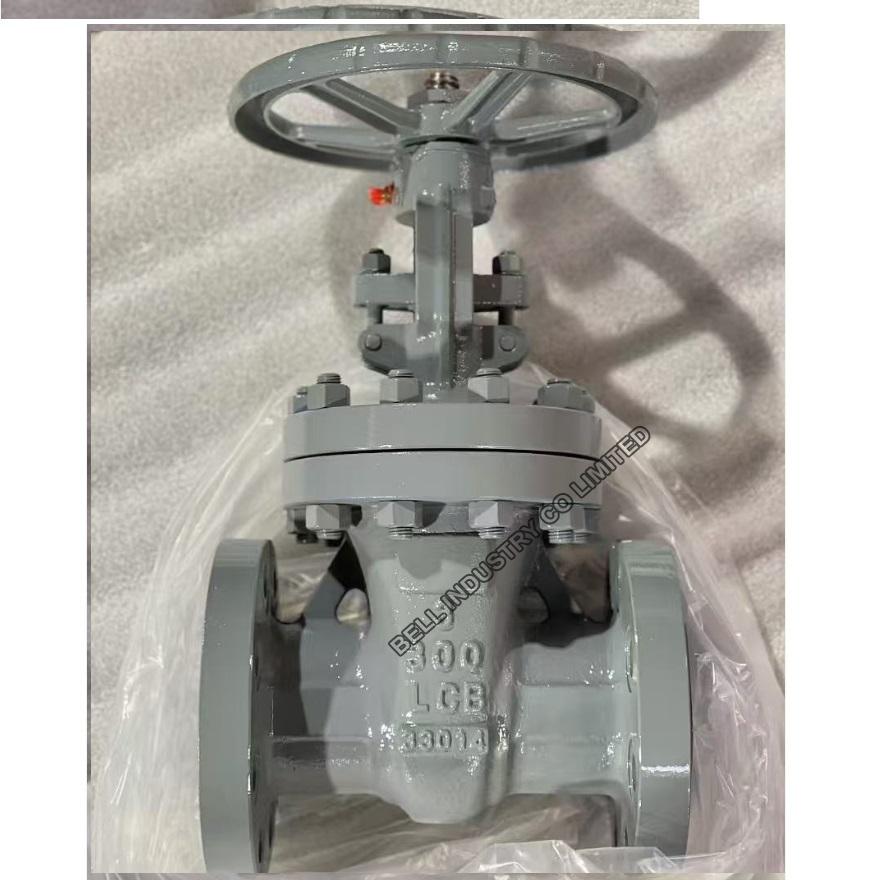

API600 Cast steel LCB Gate valves

API 600 Cast Steel Gate Valve
Key works: Cast, Steel, Gate, Valve, Flange, Rising Stem, OS&Y, API600
PRODUCT RANGE:
Sizes: NPS 2 to NPS 48
Pressure Range: Class 150 to Class 2500
Temperature :-20℃ ~200℃ (-4℉~392℉)

MATERIALS:
Forged (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5,)
Casting (A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy

STANDARD
Design & manufacture API 600, API 603, ASME B16.34
Face-to-face ASME B16.10
End Connection Flange Ends to ASME B16.5, ASME B16.47, MSS SP-44 (NPS 22 Only)
- Socket Weld Ends to ASME B16.11
- Butt Weld Ends to ASME B16.25
- Screwed Ends to ANSI/ASME B1.20.1
Test & inspection API 6D, API 598
Fire safe design API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848
Other PMI, UT, RT, PT, MT

Design Features:
1.Full or Reduced Bore
2.RF, RTJ, or BW
3.Outside Screw & Yoke (OS&Y), rising stem
4.Bolted Bonnet or Pressure Seal Bonnet
5.Flexible or Solid Wedge
6.Renewable seat rings
7.Anti blow-out stem
8.Zero leakage
