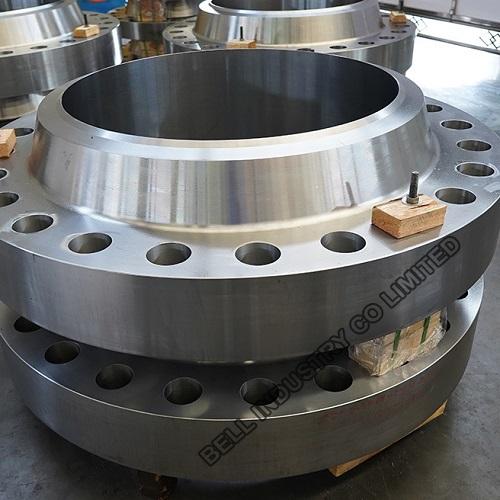

ANSI B16.5 Weld neck Flange Class 150 LBS to 2500 LBS

Standards: ANSI B16.5 ASME B16.47 series A/B
Pressure rating: ANSI Class 150, 300, 600, 900, 1500 2500lbs
Size: 1/2″ - 60″
Description: ANSI B16.5 Weld neck Flange Class 150 LBS to 2500 LBS, Material ANSI F 304/L, F316/L F317L,F347H,F321,F904L,F310S ,F51/60 F53,F44,A105,A105N Alloy Steel: WHPY45/52/65/80 Alloy Steel: WHPY45/52
INQUIRY EMAIL

ANSI B16.5 Weld neck Flange Class 150 LBS to 2500 LBS

Forged Steel Flange Size Range from 1/2" to 72"(15mm to 1800mm)

-Material:
--Stainless steel: ASTM A182 F304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/904L/ etc;
--Carbon steel: ASTM A105/A105N/A694F42/46/52/56/60/65/ 70 / A350 LF3/ A350 LF2,ST37.2, S235JR, C22.8, Q235, P250GH, RST37.2 etc.
--Alloy steel: ASTM A182 F1/ F5/ F9/ F11/ F22/ F91/ etc.
--Others:Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc

-Standard:ASME / ASME B16.47,ASME / ANSI B16.5,

-Type: Blind, Welding Neck, Long Welding Neck, Socked Weld, Lap Ring Joint, Threaded, Slip On, Plate, Orifice
