Cast Steel Valves

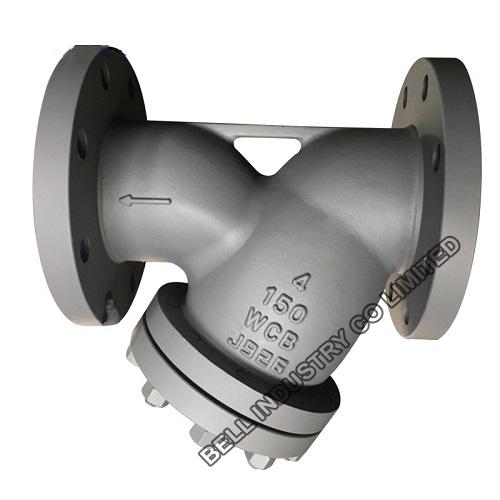

600 LBS Y Type Strainer -CAST STEEL
- Strainer Type: Y Type
- Sizes: 2”- 36”
- Design and Manufacture: ASME B16.34
- End flange dimension: ASME B16.5,ASME B16.47 A
- Description: 600 LBS Y Type Strainer -CAST STEEL
-
600 LBS Y Type Strainer -CAST STEEL
-Strainer Type: Y Type
-Sizes: 2”- 36”
-Design and Manufacture: ASME B16.34
-Inspection and Test: API 598
-End flange dimension: ASME B16.5,ASME B16.47 A
-BW end dimension: ASME B16.25
-Pressure-temperature ratings: ASME B16.34
-Face to face and end to end: ASME B16.10
-Pressure rating: ANSI 600lbs
-Suitable medium: Water, gas, oil, steam etc
-Body material: WCB, LCB, LCC, CF8, CF8M, CF3, CF3M etc.
-Screen: Stainless steel (SS304, SS316, SS316L), Duplex Stainless Steel (2205, 2507)
-Mesh size: 10mesh, 20mesh, 40mesh, 60mesh, 100mesh,200mesh,400mesh etc
-Nace Mr0175
-End connection: BW, RF, RTJ
Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.
B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.
C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.
D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.
