Stainless Steel Screwed end Valves

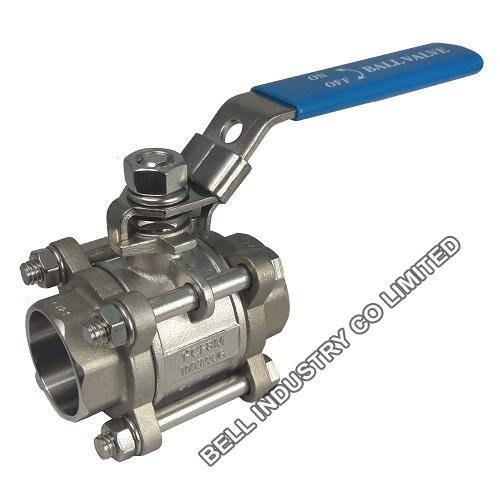

3PC STAINLESS STEEL BSP BALL VALVE

Full port, 1/8"-4"(DN6-DN100)
Nominal Working Pressure:1000 WOG:Max 1000 psi for Water, Oil, Gas,
Investment casting
Thread type: ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226
Description: 3-PIECE BALL VALVE, BSP, STAINLESS STEEL 304 or 316. Full Bore. Body, Stainless Steel. Ball / Stem, Stainless Steel. Seat, RPTFE
INQUIRY EMAIL

Product Description

Material: CF8(304),CF8M(316),CF3(304L),CF3M(316L);
Seat Material:PTFE, RPTFE,PPL;

Float Ball type;
Full port, 1/8"--4" (DN6~DN100);
Working Pressure:1000WOG (PN63),150LB-600LB;
Working Temperature:-20℃ ~200℃ (-4℉~392℉);
Investment casting;
Blow-out proof stem;
Anti-static device (option);
Locking device;
Thread type: ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226(BSP);

PREVIOUS：2PC STAINLESS STEEL BSP BALL VALVE NEXT：Stainless Steel Ball Valve with ISO Mounting pad
