150LB BSP Threaded Fittings
150LB BSP NPT SCREWED ELBOW 45 Deg STAINLESS STEEL 316 304
- Size: 1/4"-4"
- Pressure: 150LB
- Dimension: ANSI B16.3 or DIN 2982
- Material: SS201, SS304/CF8, SS316/CF8M, DIN 1.4408, DIN 1.4401
- Description: 150LB BSP NPT SCREWED ELBOW 45 Deg STAINLESS STEEL 316 304, Pressure Rating upto 10 BAR (150 PSI), Sockets & Pipe Nipple to 50 BAR (250 PSI), Female threads are BSPP (Parallel) to ISO 228-1, Male Thre
-

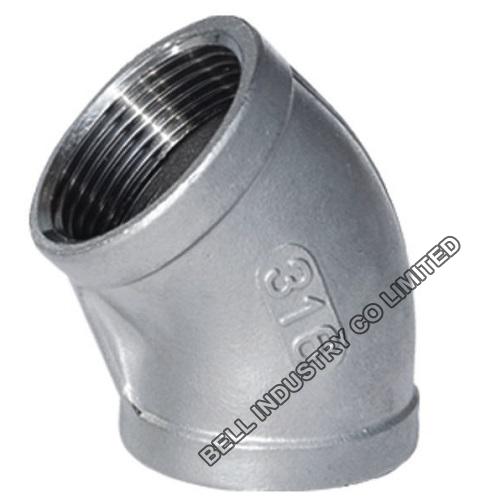

150LB BSP NPT ELBOW 45 Deg STAINLESS STEEL 316 304
-Size: 1/4"-4"
-Pressure: 150LB
-Dimension: ANSI B16.3 or DIN 2982
-Material: SS201, SS304/CF8, SS316/CF8M, DIN 1.4408, DIN 1.4401
-Casting Process : Investment Casting
-Manufactured to ISO 4144.
-Maximum working pressure 150LBS (10 bar).
-Thread Ending: NPT, DIN, BSP, BSPP, BSPT, ISO7-1, ISO228-1 etc.
