Cam And Groove Couplings

  • Type F - Stainless Steel Cam and Groove Quick Coupling Fittings-304-316
Type F - Stainless Steel Cam and Groove Quick Coupling Fittings-304-316

Type F - Stainless Steel Cam and Groove Quick Coupling Fittings-304-316

  • Type F Coupler- Female Camlock End + Male Thread
  • Manufactured to MIL-C-27487 / EN 14420-7 (DIN 2828)
  • Size: 1/2" to 4" (DN15-DN100)
  • Max Pressure: 1/2" (150PSI), 3/4" to 2" (250PSI), 2-1/2" (225PSI), 3" (200PSI), 4" (100PSI)
  • Description: Type F - Stainless Steel Cam and Groove Quick Coupling Fittings-304-316, End Connection: Male Adapter & Female Thread - BS21 (BSPT & BSPP), ANSI B2.1(NPT), Investment Casting Body, Material: SS304 (CF
  • INQUIRY   EMAIL

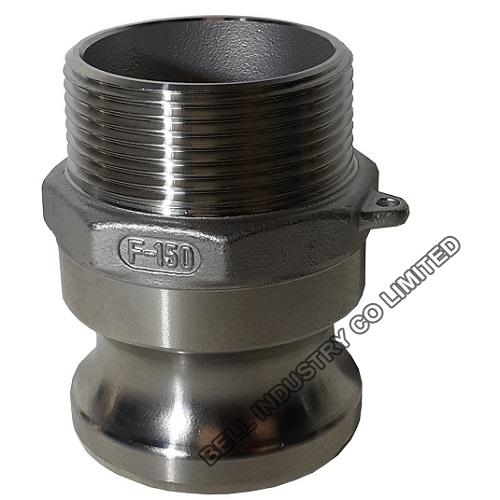

Type F - Stainless Steel Cam and Groove Quick Coupling Fittings-304-316


-Type F Coupler- Female Camlock End + Male Thread
-Manufactured to MIL-C-27487 / EN 14420-7 (DIN 2828)
-Size: 1/2" to 4" (DN15-DN100)
-Max Pressure: 1/2" (150PSI), 3/4" to 2" (250PSI), 2-1/2" (225PSI), 3" (200PSI), 4" (100PSI)
-End Connection: Male Adapter & Female Thread - BS21 (BSPT & BSPP), ANSI B2.1(NPT)
-Investment Casting Body
-Material: SS304 (CF8,SUS304, 1.4308), SS316 (CF8M, SUS316,1.4408),SS304L,SS316L.
-Threaded type: NPT threads, others can also be considered.
-Pressure: Up to 30 bars.

Features:
-Straight through, lightweight, leak-free sealing.
-Quick and easy assembly without the use of tools.
-Assemble with S.S. accessories.
-Large, ergonomically designed handles.
-Buna-N gasket as standard with other gaskets as options.

Applications:
Simple, reliable, versatile and excellent use for applications in high pressure fluid handling.
